Product Details:
|
Features: | Heat Resistant,Abrasion Resistant | Surface Treatment: | One Side Or Both Sides Coated |
---|---|---|---|
Colour: | Red,Black,Gray Or Customized | Substrate: | Fiberglass Fabric |
Length: | 50m/roll | Coating: | Silicone Rubber |
Fiberglass: | E-glass | Weave Type: | Plain Woven,Twill Woven |
Highlight: | Fiberglass Cloth Silicone Rubber Coated,Tear Proof Fiberglass Fabric,Abrasion Proof Fiberglass Fabric |

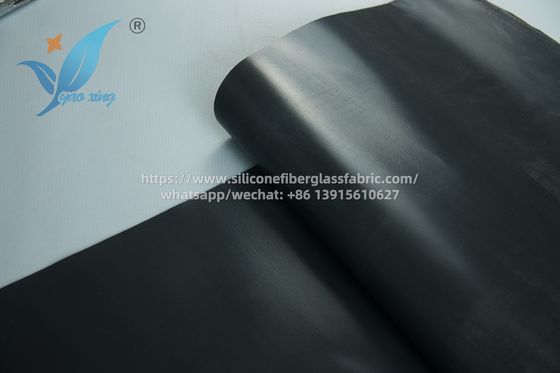

Silicone Rubber Coated Fiberglass Cloth Tear And Abrasion Proof
1. Scope of application
Silicone rubber is a type of fluorine macromolecule with elastic properties, offering high-temperature resistance, insulation and long-term ageing resistance. When compounded with fibreglass, it becomes a highly functional and useful new material.
2. Characteristics
It has special characteristics, such as high-temperature resistance, ventilation resistance and fine high-temperature resistance. It is also very soft and tenacious, so it can be used in the fields of aerospace, chemistry, large electrical equipment, machinery and metallurgy.
3. Storage & Transport
It should be stored in an environment with a temperature between 0 and 40°C and a humidity greater than 75%, away from heat sources. Avoid contact with acids, alkalis and other materials that are harmful to rubber. During transportation, prevent extrusion.
4.Customized Solutions
The products are available in red, silver grey and black, and can be produced according to the customer's specific request.
5. Packing
50 m/roll, packed in a PVC bag.
6. Specification
Type | Thickness |
Breaking Strength (N/50mm) |
Burst Strength Mpa |
Peeling Strength N/m |
Flame Retardant |
Weight g/m2 |
|
warp | weft | ||||||
SRC-0.3 | 0.30+0.03 | ≥1800 | ≥1400 | ≥1.2 | ≥450 | FV-0 | 470+50 |
SRC-0.5 | 0.50+0.05 | ≥2000 | ≥1600 | ≥2.0 | ≥450 | FV-0 | 640+60 |
SRC-1.1 | 1.10+0.10 | ≥3800 | ≥3400 | ≥2.6 | ≥450 | / | 1700+170 |
SRC-1.5 | 1.50+0.10 | ≥3200 | ≥2800 | ≥3.0 | ≥450 | / | 2300+230 |
