|Product Name:||Fireproof Silicone Rubber Coated Fiberglass Fabric||Material:||E-glass And Silicone Rubber|
|Usage:||Insulation Sleeve,fire Curtain,Flexible Joint(fireproof)||Working Temperature:||-40-280℃|
|Weave Style:||Plain,twill,stain||Color:||Red,Gray,White And So On|
50m/roll Fireproof Rubber Fabric,

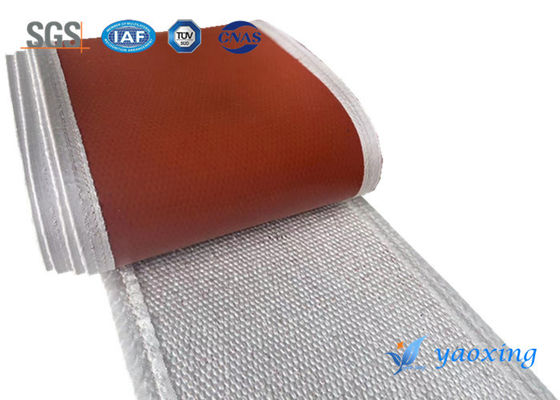

Acrylic Sealant Silicone Coated Fiberglass Cloth,
Fireproof Silicone Coated Fiberglass Cloth
Fiberglass fabric coated with silicone rubber is made with the basal material of high-temperature resistant fiberglass fabric and silicone rubber by follow-processing; it is a compound material with high quality of performance. It has been widely used in spaceflight, chemical industry, petroleum, large generating electricity equipment, machinery, metallurgy, electric insulation, construction and other fields.
1. Good performance on resisting high temperature and low temperature, the resistance of lowest temperature:-70℃ to highest temperature: 280℃; good capability on temperature maintaining;
2. High strength: it is soft and ductile, could be tailored;
3. Good capability on chemical corrosion resistant, oil-proofing, waterproofing (washable);
4. Heat-aging and chemical-aging resistant, and preventing from ozone, oxygen and light;
5. High insulation performance, constant dielectric: 3-3.2, breakdown voltage20-50kv/mm.
|One side pressed silicone rubber|
|Weight(weight of pressed)||750gsm-1250gsm||31.67oz/yd2-52.78oz/yd2|
Red ,black,white and
|Red ,black,white and etc|
Basic fabric 550℃ Short term 600℃
Basic fabric 1022℉ Short term 1112℉
Fiberglass fabric coated with silicon rubber product is a new complex material which has been widely used in such fields as: construction, electric insulation, pipeline ductile conjunction, chemical corrosion resistant, sealing, etc. the main using fields are:
1. Electric insulation:
Fiberglass fabric material coated with silicon rubber has high electric insulation grade, and it could endure high voltage load, be made into insulated fabric, pipeline, etc
2. Non-metal compensating facility:
non-metal compensating facility is an instrument for pipeline ductile injunction, and it could solve such sabotage problems to pipeline as heat inflating-cold reducing; it is used as the basic material of ductile inflating knot, having the capability of high using temperature, corrosion resistant, seasoning resistant, good elasticity and ductile. This kind of product has been widely used in petroleum, chemical industry, cement, steel and copper, energy, etc, and has got good using efficiency;
3. Corrosion proofing field
Fiberglass fabric coated with silicon rubber could be used as external and internal corrosion proofing layer of pipeline and preservation jar, and it has excellent corrosion resistance, good capability to resist high temperature, high strength, so it is an ideal corrosion-proofing material.
4. Other fields:
Fiberglass fabric coated with silicon rubber could be used on sealing material of construction, high temperature corrosion-proofing belt, packing material, etc.
