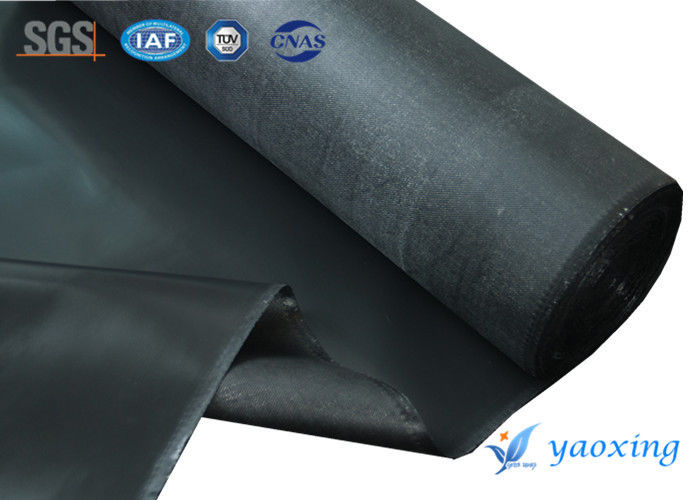

Plain Twill Stain Silicone Rubber Coated Fiberglass Fabric

Plain Twill Stain Silicone Rubber Coated Fiberglass Fabric
Plain Twill Stain Silicone Rubber Coated Fiberglass Fabric
Plain Twill Stain Silicone Rubber Coated Fiberglass Fabric Plain Twill Stain Silicone Rubber Coated Fiberglass Fabric

Large Image :  Plain Twill Stain Silicone Rubber Coated Fiberglass Fabric

Product Details:
Place of Origin: China
Brand Name: Yaoxing
Certification: SGS
Model Number: SRC1.2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: pe or export cartons with pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 100000 squire metres per month

Plain Twill Stain Silicone Rubber Coated Fiberglass Fabric

Description
Product Name: Silicone Coated Glass Cloth Material: E-glass And Liquid Silicone
Usage: Welding Protection,insulation Sleeve,fire Curtain Working Temperature: -40-280℃
Weave Style: Plain,twill,stain Color: Grey,red,black,white And So On
High Light:

Stain Silicone Rubber Coated Fiberglass Fabric

,

Twill Silicone Rubber Coated Fiberglass Fabric

,

Plain Silicone Impregnated Fiberglass Cloth

Silicone Rubber Coated Fiberglass Fabric Used In High Temperature Exhaust Duct



1, Description:



Silicone-impregnated fiberglass fabric is highly flexible and provides an excellent protection fabric used in insulating blankets and other heat resistant parts. Silicone coating has added water and oil resistance and low smoke and flame retardant. Although the base fiberglass fabric has a rating of 1000°F/550°C, the silicone coating is rated for a continuous 550°F/287°C. The Silicone Coated Fiberglass Fabric provides good flexibility, puncture, and tear resistance. This fabric's dry surface does not stick to the sewing table, making it easier to sew, drape, and handle.



2, Specifications:





Product No



Silicone

Coated

Sides



Basic Fabric

Weave Style

Basic Fabric Weight Silicone Rubber Weight Thickness Width Length
oz/yard g/mtr oz/yard g/mtr inch mm Inch cm yard meter
YX-SRC-0.4 Two Twill 13.86 430 4.19 130 0.0156 0.4 40/47/60/72 100/120/150/180 54.7/109.4 50/100
YX-SRC-0.6 Two Satin 21.28 660 7.05 200 0.0234 0.6 40/47/60/72 100/120/150/180 54.7 50
YX-SRC-0.8 Two 8H Satin 27.08 840 7.05 200 0.0312 0.8 40/47/60/72 100/120/150/180 54.7 50



Advantage with silicone rubber and fiberglass fabric:



1. High temperature resistance

2. Excellent anti abrasion property

3. Easy to be cut, sewn and fabricated

4. Removable insulation mattress, jacket & pad

5. Fire doors/smoke curtain

6. Dusts filter bag

7. Flexible expansion joints & compensators



Application:



1. Electrical insulation The glass fiber membrane structure material coated with silicon rubber has a high electrical insulation level, can withstand high-voltage loads, and can be made of insulating cloth, casing and other products.

2. Fabric expansion joints Fabric expansion joints are used as flexible connection devices, which can solve the damage to the pipeline due to thermal expansion and contraction. Silicone rubber coated glass fiber membrane structure materials are used as the matrix of flexible expansion joints, which have high temperature resistance and corrosion resistance. Anti-aging properties, excellent flexibility and flexibility. It has been widely used in petroleum, chemical, cement, steel, energy and other fields.
