Product Details:
|
Product Name: | Silicone Coated Glass Cloth | Material: | E-glass And Liquid Silicone |
---|---|---|---|
Usage: | Welding Protection,insulation Sleeve,fire Curtain | Working Temperature: | -40-280℃ |
Weave Style: | Plain,twill,stain | Color: | Grey,red,black,white And So On |
Highlight: | Width 100cm Fireproof Fiberglass Fabric,SGS Silicone Coated Fireproof Fiberglass Fabric,Pipeline Protection Silicone Coated Fiberglass Fabric |

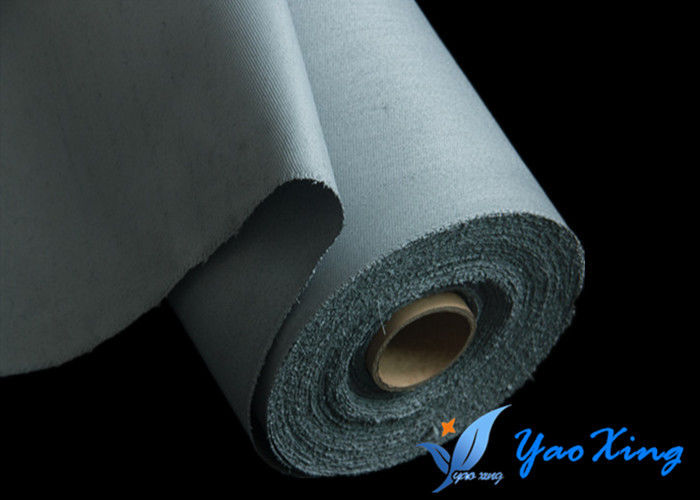

Silicone Coated Fabric For Pipe Fireproof And Insulation With Long Service Life
1, Description:
Silicone fiberglass cloth is usually used to make covers for insulating equipment, welding protection, curtains and insulating blankets. This material is resistant to most acids and alkalis, and is not affected by most bleaches and solvents. It has a high degree of flexibility and comfort.
This is a heat-resistant, heat-resistant and flame-retardant thermal insulation glass fiber fabric made of high-quality E-type glass fiber. It will not burn and can withstand continuous exposure to temperatures of 1000°F / 520°C. It is used to protect equipment, wires, cables, hoses, tubing and pipelines. This high-temperature fabric can provide thermal insulation and personnel protection.
2, Specifications:
Product No |
Silicone Coated Sides |
Basic Fabric Weave Style |
Basic Fabric Weight | Silicone Rubber Weight | Thickness | Width | Length | |||||
oz/yard | g/mtr | oz/yard | g/mtr | inch | mm | Inch | cm | yard | meter | |||
YX-SRC-0.4 | Two | Twill | 13.86 | 430 | 4.19 | 130 | 0.0156 | 0.4 | 40/47/60/72 | 100/120/150/180 | 54.7/109.4 | 50/100 |
YX-SRC-0.6 | Two | Satin | 21.28 | 660 | 7.05 | 200 | 0.0234 | 0.6 | 40/47/60/72 | 100/120/150/180 | 54.7 | 50 |
YX-SRC-0.8 | Two | 8H Satin | 27.08 | 840 | 7.05 | 200 | 0.0312 | 0.8 | 40/47/60/72 | 100/120/150/180 | 54.7 | 50 |
Advantage with silicone rubber and fiberglass fabric:
1. -70°C-280°C high temperature resistance, good low temperature performance;
2. High strength;
3. Resistance to ozone, oxidation, light and weathering and aging;Working temperature is -70°C-300°C
Working temperature is -70°C-300°C
With fire resistance, heat insulation, water resistance, sunlight and weathering aging, the weather resistance can be up to 10 years when used outdoors and in age
Highly insulated
Physical and chemical properties
Application:
pipe insulation, equipment insulation, pipe wrap, electrical insulation, insulation jackets, mattress, pad, heat shielding, heat resistant cloth, heat containment, hose covers, pyrotechnics, conveyor belting, cable protection
