Product Details:
|
Product Name: | Silicone Coated Glass Cloth | Material: | E-glass And Liquid Silicone |
---|---|---|---|
Usage: | Welding Protection,insulation Sleeve,fire Curtain | Working Temperature: | -40-280℃ |
Weave Style: | Plain,twill,stain | Color: | Grey,red,black,white And So On |
Highlight: | Fire Curtain Silicone Coated Fiberglass Fabric,100m Length Silicone Coated Fiberglass Fabric,Fire Curtain Silicone Coated Glass Cloth |

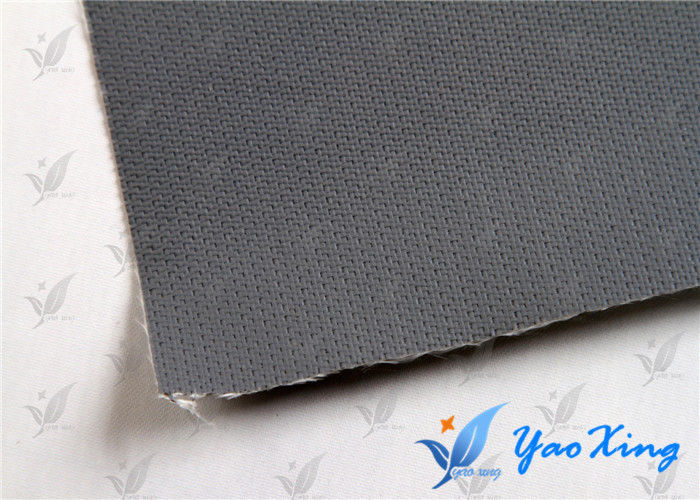

Gray Silicone Coated Fiberglass For Fire Curtain With Good Fireproof Performance
1, Description:
A method for manufacturing a fiber-reinforced silicone matrix resin composite material. The method includes impregnating at least one layer of reinforcing fibers with a curable silicone matrix resin to form a plurality of fiber layers coated with a matrix resin. The base resin is basically rigid. After curing, spray a layer of a curable silicone resin coating that is thinner than the fiber layer coated by the matrix resin on one side of the fiber layer coated by the matrix resin, and has a thickness of substantially coextensive curable silicone resin coating The fiber layer coated with the matrix resin is thinner, and the Young's modulus of the sprayed silicone resin during curing is lower than the aforementioned. Cured organic silicon matrix resin; stacking a plurality of the sprayed layers
2, Specifications with Silicone Coated Glass Cloth:
Product No |
Silicone Coated Sides |
Basic Fabric Weave Style |
Basic Fabric Weight | Silicone Rubber Weight | Thickness | Width | Length | |||||
oz/yard | g/mtr | oz/yard | g/mtr | inch | mm | Inch | cm | yard | meter | |||
YX-SRC-0.4 | Two | Twill | 13.86 | 430 | 4.19 | 130 | 0.0156 | 0.4 | 40/47/60/72 | 100/120/150/180 | 54.7/109.4 | 50/100 |
YX-SRC-0.6 | Two | Satin | 21.28 | 660 | 7.05 | 200 | 0.0234 | 0.6 | 40/47/60/72 | 100/120/150/180 | 54.7 | 50 |
YX-SRC-0.8 | Two | 8H Satin | 27.08 | 840 | 7.05 | 200 | 0.0312 | 0.8 | 40/47/60/72 | 100/120/150/180 | 54.7 | 50 |
Advantage with silicone rubber and fiberglass fabric:
Working temperature is -70°C-300°C
With fire resistance, heat insulation, water resistance, sunlight and weathering aging, the weather resistance can be up to 10 years when used outdoors and in age
Highly insulated
Physical and chemical properties
Application:
Used as welding protective agent, thermal insulation quilt
Machine conveyor belt
Chemical resistance, packaging material
Used in aerospace, shipbuilding, chemical industry, power plants, automobiles, construction, pipeline flexibility and sealing industries.
