Product Details:
|
| Matreial: | Silicone And Fiberglass | Color: | Red |
|---|---|---|---|
| Usage: | Smoke Curtain,fire Blankets,joint | Roll Length: | 100m/roll |
| Working Temperature: | -40℃-220℃ | Width: | 1-1.8m |
| High Light: | silicone rubber coated fiberglass cloth,Silicone Coated Fiberglass Fabric Red,Silicone Coated Fiberglass Fabric 1.8m |
||

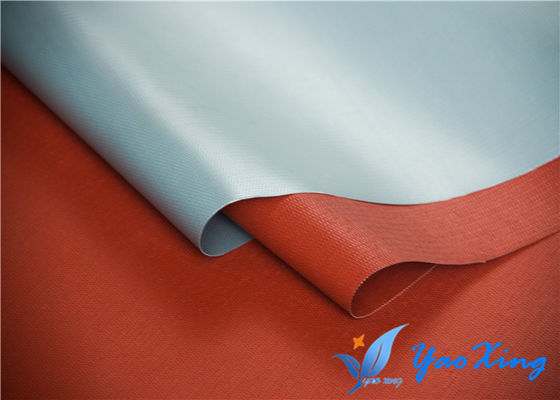

Red Silicone Coated Fiberglass Fabric For Smoke Curtain And Fire Blankets
Description:
Yaoxing company provides one-sided/double-sided silicone coated fire-resistant fiberglass cloth with many varieties of coating weight, colors and widths for difference applications.
SRC0.4 is a medium weight woven fiberglass fabric coated with both side silicone rubber.
Use for the external material of thermal insulation, have good performance in water proofing had heat resistant, export to Europe and other market for many years.
Coated Fiberglass Fabric Parameter List:
| BASE FABRIC | Base fabric style No.SRC0.4 | ||
| (metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1﹡2 | ECG 75 1/2 | |
| Weft | EC9 68 1﹡2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| Coating | Silicone rubber 2 sides | ||
| Weight | 590 ± 25 g/m2 | 17.4 ± 0.74 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.45± 0.02 mm | 0.018 ± 0.0007 inch | ASTM D1777-96 |
| Color | Red | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2500C (4800F) |
||
Main Coated Fiberglass Fabric Application:
- Thermal insulation covers
- Fire doors & Fire curtains
- Welding/fire blankets
- Other fire control systems
- Fabric expansion joints
- Fabric ductwork connector
Coated Fiberglass Fabric Advantage:
Easy to cut and sewing
Short lead time (5-15 days)
P&D department to ensure the quality
Chinese manufacturer
Reasonable price
