Product Details:
|
Width: | 1m,1.2m,1.5m,2m | Weave Type: | Plain Woven,Twill Woven |
---|---|---|---|
Application: | Electrical Insulation,Non-metallic Compensator | Surface Treatment: | Silicone Coated |
Color: | Red,Grey,Black Or Customized | Material: | Fiberglass Cloth And Silicone |
Good Features: | High Temperature Resistance,Water-proof | Roll Length: | 50m,100m |
Highlight: | fireproof silicone fiberglass fabric,silicone coated fiberglass duct fabric,0.6mm fireproof duct connection fabric |

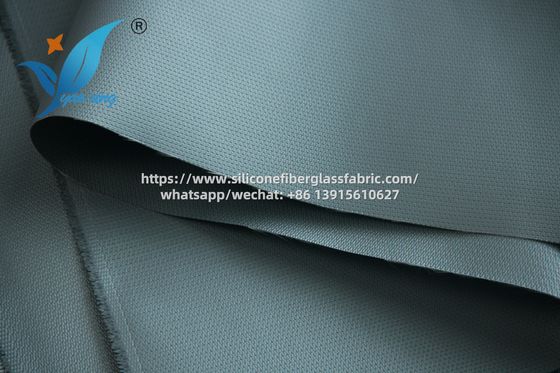

0.6mm Fireproof Silicone Cloth For Ventilation Duct Connections
Product Description
Yaoxing fireproof silicone cloth,with single side and double side coating available, is a high-performance, multi-purpose composite new material with fireproof, high-temperature-resistant, high-strength fiberglass cloth as the substrate, coated with branded silicone rubber after high-temperature heat vulcanization. The product has a high use temperature, long-term temperature resistance -40 ℃ to 200 ℃ .
Silicone rubber has comprehensive performance, heat resistance, anti-aging, high insulation, chemical resistance. Coated silicone fiberglass fabric not only retains the temperature resistance, fire resistance and insulation of glass fiber, but also has the characteristics of anti-corrosion, waterproof, oil-proof, both soft and toughness, easy to process, superior to ordinary coated fabrics, and its wide range of applications.
Silicone fabric application scope
1. Removable pipe insulation jacket, energy-saving insulation jacket, equipment insulation jacket, pipeline equipment adiabatic insulation
2. Fan soft connection, non-metallic expansion joints (compensator), fireproof soft connection
(Note: Silicone rubber can not be used for pipeline compensator containing SO2 composition of flue gas and water vapor)
3. Welding blankets, welding blankets, fireproof blankets, fire extinguishing blankets
4. Fireproof heat insulating curtains, smoke and smoke drapery curtains, fire curtains
5. Electrical insulating cloth, the Silicone rubber cloth has a high electrical insulation grade, can withstand high voltage load
6. Aerospace, chemical, petroleum, energy, metallurgy, large power generation equipment, electrical insulation, cement, machinery, construction and other fields
7. Anticorrosion field. Silicone rubber coated glass fiber cloth, can be used as the internal and external anti-corrosion layer of the pipeline, excellent anti-corrosion performance, high strength
8. Construction sealing materials, high-temperature anti-corrosion conveyor belts, packaging materials and other fields
Product Reference Parameters
Product No | Silicone Coated Sides | Basic Fabric Weave Style | Basic Fabric Weight | Silicone Rubber Weight | Thickness | |||
oz/yard | g/mtr | oz/yard | g/mtr | inch | mm | |||
YX-SRC-0.4 | Two | Twill | 13.86 | 430 | 4.19 | 130 | 0.0156 | 0.4 |
YX-SRC-0.6 | Two | Satin | 21.28 | 660 | 7.05 | 200 | 0.0234 | 0.6 |
YX-SRC-0.8 | Two | 8H Satin | 27.08 | 840 | 7.05 | 200 | 0.0312 | 0.8 |
Buyer's Notice
1. Regarding delivery time: It will take 7 to 25 days after receiving your payment bank receipt. The specific delivery time depends on the products and quantity you ordered.
2. Regarding samples: We can provide a small sample of regular products for your quality test free of charge. The freight is payable.
3. Regarding customization: The specifications and dimensions of the products can be customized according to the customer's requirements. Therefore, it is necessary to contact and make a reservation in advance when purchasing.
