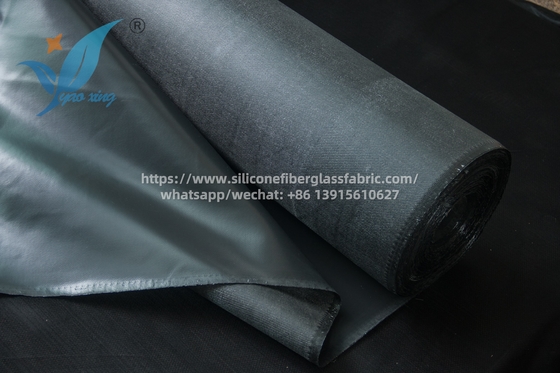

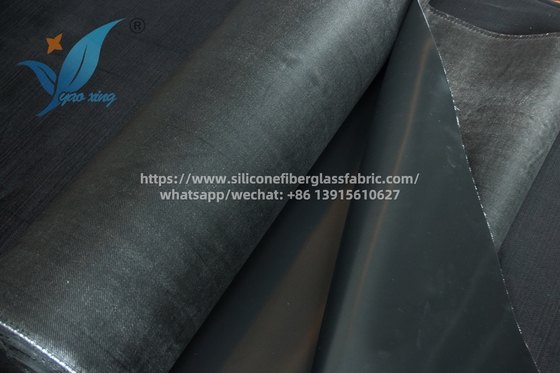

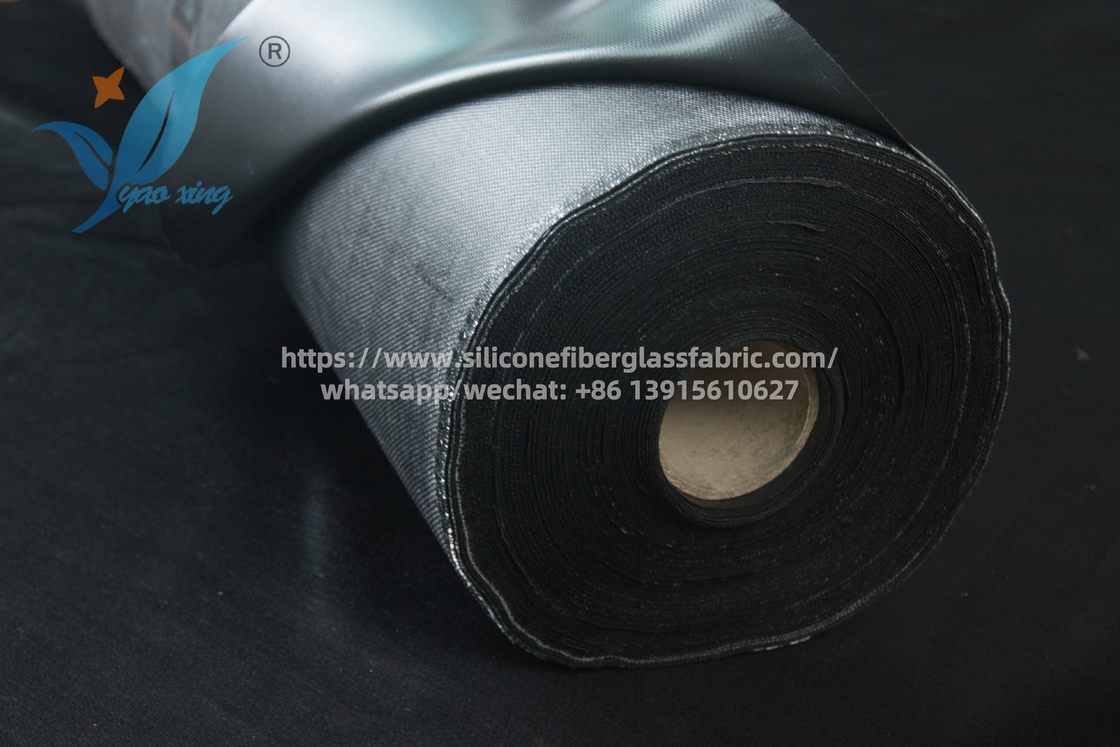

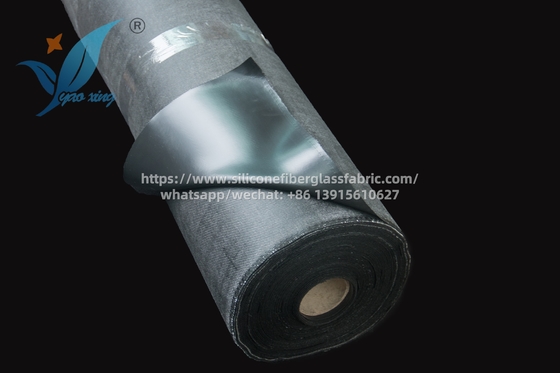

1000mm Wide Heat Resistant Fabric Silicone Coated For Industrial Seals

1000mm Wide Heat Resistant Fabric Silicone Coated For Industrial Seals

Introduction

  Silicone coated heat resistant fabric is a new type of high-performance and multi-purpose composite material made by compounding silicone rubber with high-temperature resistant and high-strength glass fiber cloth as the base material through a special process. Silicone glass fiber cloth features excellent heat resistance (up to 200℃ for a long time), cold resistance (up to -40℃ for a long time), anti-aging property, high strength, softness and cuttability, as well as high insulation performance.

Features

• Temperature resistance range: -40℃ to 200℃;

• Resistant to ozone and aging;

• Excellent weather resistance for field use;

• The service life can reach up to 10 years;

• It features high insulation performance, with a dielectric constant of 3 to 3.2 and a breakdown voltage of 20 to 50KV/mm.

Application

1. Electrical insulation: Silicone rubber cloth has a relatively high electrical insulation grade and can withstand high voltage loads. It can be made into insulating cloth, sleeves and other products.

2. Non-metallic compensators: Silicone rubber cloth can be used as a flexible connection device for pipelines. It can solve the damage to pipelines caused by thermal expansion and contraction. Silicone rubber cloth has high temperature resistance, corrosion resistance, anti-aging performance, good elasticity and flexibility, and can be widely used in the fields of petroleum, chemical engineering, cement, energy, etc.

3. In terms of anti-corrosion: Silicone rubber-coated fiberglass cloth can be used as the inner and outer anti-corrosion layer for pipelines and storage tanks. It has excellent anti-corrosion performance and high strength, making it an ideal anti-corrosion material.

4. In terms of temperature resistance: As a heat-resistant and flame-retardant material for fire blankets and fire curtains.

5. Other fields: Silicone rubber-coated glass fiber membrane structural materials can be applied in fields such as building sealing materials, high-temperature anti-corrosion conveyor belts, and packaging materials.
