Product Details:
|
| Material: | Black Silicone Coated Fiberglass | Thickness: | 1.2mm |
|---|---|---|---|
| Working Temperature: | 220 Degrees Celsius | Colour: | Red，Black,Gray,White And So On |
| Roll Length: | 50 Metres Per Roll | Width: | 1000mm/1200mm |
| Package: | PVC Package | Silicone Side: | Single Sides |
| Coating: | Silicone | Certification: | SGS |
| High Light: | Silicone Fiberglass Fabric 1.2mm,Silicone Fiberglass Fabric Black,Silicone Coated Fiberglass Fabric SGS |
||

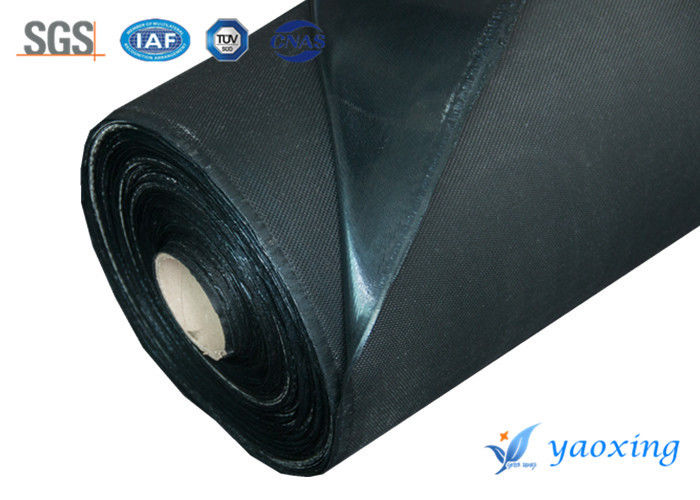

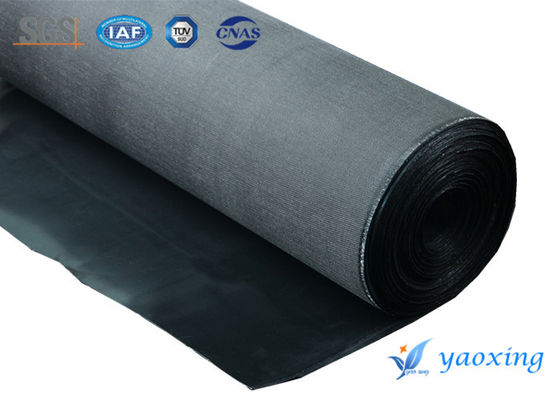

1.2mm Black Silicone Coated Fiberglass For Large Industrial And Mining Enterprises
Description:
Black Silicone Coated Fiberglass is a type of high-performance composite material that consists of a fiberglass base fabric coated with a layer of black silicone rubber. The silicone coating is typically applied to one or both sides of the fabric, creating a flexible and durable material with excellent thermal, electrical, and chemical resistance.
The fiberglass base fabric provides the material with high strength and dimensional stability, while the black silicone coating enhances its properties, making it suitable for a wide range of industrial applications.
Black Silicone Coated Fiberglass is highly resistant to high temperatures up to 260°C, making it ideal for use in applications where thermal resistance is essential, such as thermal insulation covers, furnace curtains, and welding blankets. It is also highly resistant to chemicals, oils, and solvents, making it suitable for use in harsh environments such as chemical processing plants and oil refineries.
In addition to its high-temperature and chemical resistance, Black Silicone Coated Fiberglass also offers excellent electrical insulation properties. It is a non-conductive material, making it ideal for use in electrical insulation applications such as electrical insulation tapes, gaskets, and seals.
Black Silicone Coated Fiberglass is available in a range of thicknesses and widths to meet various application requirements. It can be cut, sewn, or molded into different shapes and sizes to suit specific application needs. Overall, Black Silicone Coated Fiberglass is a versatile material that provides excellent thermal, electrical, and chemical resistance, making it an ideal choice for a wide range of industrial applications.
Conveyor belts:
Silicone rubber compound fiberglass cloth has superior smooth surface,heat resistant property,anti-corrosive property and strong mechanical strength,so it can be made into conveyor belts for heat and corrosive and corrosive working environment.
Below is our products sheet
| Thickness(mm) | Colour | Width(m) | Length(m/roll) | Working Temperature(℃) |
Gram per square meter (g/m2) |
MOQ |
| 1.0 | Red/Black and so on | 1/1.2 | 50 | 250 | 1650 | negotiable |
| 1.5 | Red/Black and so on | 1/1.2 | 50 | 250 | 2450 | negotiable |
| 2.0 | Red/Black and so on | 1/1.2 | 50 | 250 | 3300 | negotiable |
| 2.5 | Red/Black and so on | 1/1.2 | 50 | 250 | 4100 | negotiable |
| 3.0 | Red/Black and so on | 1/1.2 | 25 | 250 | 4800 | negotiable |
Steps:
Fabric preparation: The fiberglass base fabric is first selected and prepared for coating. The fabric is typically cleaned and inspected for any defects before the coating process begins.
Coating application: The black silicone rubber is applied to one or both sides of the fabric using a variety of methods, such as dipping, spraying, or roll coating. The thickness of the coating is carefully controlled to ensure consistent coverage and performance.
Curing: Black Silicone Coated Fiberglass is then cured in an oven at high temperature for a specific period of time. This process cross-links the silicone molecules, creating a durable and flexible coating that adheres firmly to the fabric.
Inspection and testing: Once cured, the Black Silicone Coated Fiberglass is inspected for any defects, such as pinholes, bubbles, or inconsistencies in the coating thickness. The material is then tested to ensure it meets the required specifications for properties such as tensile strength, tear strength, and thermal resistance.
Cutting and finishing: The Black Silicone Coated Fiberglass is then cut into the desired size and shape using various cutting tools, such as knives, scissors, or laser cutters. The edges may be finished with additional coatings or heat sealing to prevent fraying or unraveling.
