Product Details:
|
| Material: | Silicone Rubber And Fiberglass Fabric | Working Temperature: | 500℉ |
|---|---|---|---|
| Colour: | Red，Black,Gray,White And So On | Roll Length: | 50 Metres Per Roll Or 25 Metres Per Roll |
| Thickness: | 1.5mm,2.0mm,2.5mm,3.0mm | Width: | 1000mm/1200mm |
| Package: | PVC Bags With Pallet | Silicone Side: | Doubel Sides |
| High Light: | Fiberglass Silicone Fabric Corrosion Resistance,SGS Silicone Coated Glass Fibre Cloth,2.5mm Silicone Rubber Coated Glass Fabric |
||

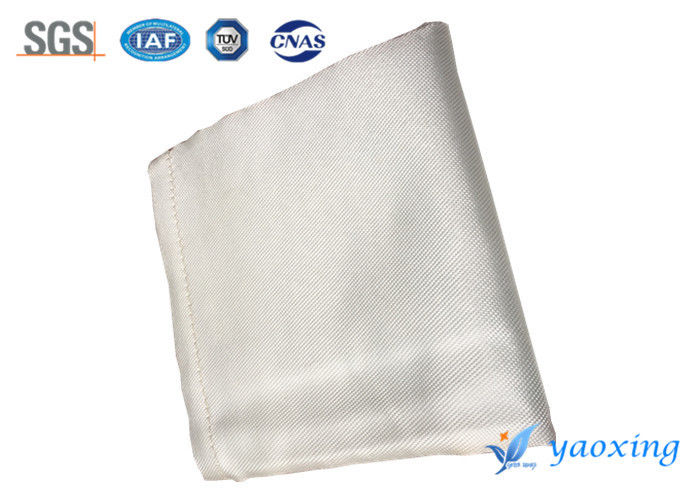

Silicone Fiberglass Fabric With Smooth Surface and Double Sides Silicone Rubber
Applications
Silicone rubber coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and is coated with organic silicone rubber. It is a newly-made-product with high properties and multiple applications. Due to its unique and excellent resistance to high-temperatures, permeability and aging, in addition to its durability, this fiberglass fabric is widely used in aerospace, chemical industry, large-scale generate electricity equipment, machinery, metallurgy, nonmetal expansion joint (compensator) and etc.
characteristics
1, used in the temperature form -70℃ to 230℃
2, resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years
3, high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
4, good flexibility and high surface friction
5, chemical corrosion resistance
Silicone calender coated fabric is designed to provide a excellent smooth surface,the silicone calender coated fabric offers increased tensile strength which allows for using in high temperature(continuously under 500 ℉)and strong pressure(maximum 1000PSI).
| Thickness(mm) | Colour | Width(m) | Length(m/roll) | Working Temperature(℉) |
Gram per square meter (g/m2) |
Breaking Down Voltage (KV/MM) |
| 1.0 | Red/Black and so on | 1/1.2 | 50 | 500 | 1650 | 20 |
| 1.5 | Red/Black and so on | 1/1.2 | 50 | 500 | 2450 | 25 |
| 2.0 | Red/Black and so on | 1/1.2 | 50 | 500 | 3300 | 30 |
| 2.5 | Red/Black and so on | 1/1.2 | 50 | 500 | 4100 | 40 |
| 3.0 | Red/Black and so on | 1/1.2 | 25 | 500 | 4800 | 50 |
