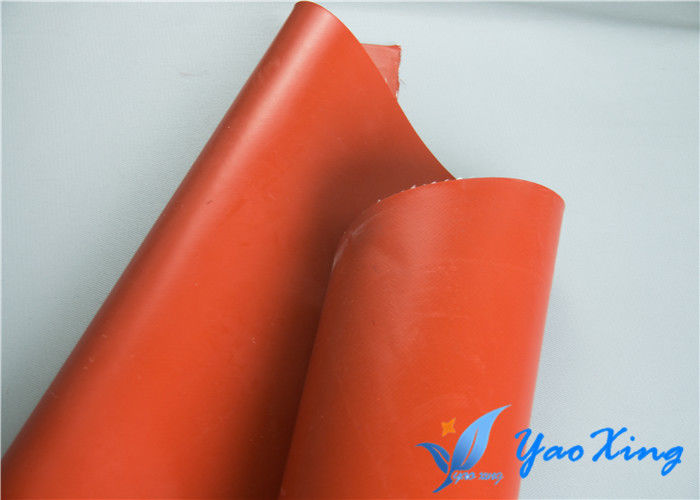

Thickness 0.30mm Silicone Coated Fiberglass Fabric Fire Resistance

Thickness 0.30mm Silicone Coated Fiberglass Fabric Fire Resistance
Thickness 0.30mm Silicone Coated Fiberglass Fabric Fire Resistance

Large Image :  Thickness 0.30mm Silicone Coated Fiberglass Fabric Fire Resistance

Product Details:
Place of Origin: China
Brand Name: Yaoxing
Certification: SGS
Model Number: SRC1.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PVC package
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 35000meters per month

Thickness 0.30mm Silicone Coated Fiberglass Fabric Fire Resistance

Description
Product Name:: Silicone Coated Glass Fabric Material:: Silicone And Fiberglass
Temperature Resistance:: -70℃-280℃ Color:: Red,Black,White,Gray And So On
Length:: 50m/roll Width:: 1m/1.2m
High Light:

50m/roll Silicone Coated Glass Fibre Cloth

,

1.2m Width Silicone Coated Fiberglass Fabric

,

Silicone 2 Sides Coated Fiberglass Fabric

Thickness 0.30mm Fire Prevention 260 ºC Silicone Coated Fabric



1.Scope of application:



Silicon rubber is a kind of fluorine macromolecule elasticity shell, which has the performance of fine high temperature-resistance and insulation and longtime aging-resistance. After compounded with fiberglass, it is a kind of high function, useful and new material.



2. Specification with Silicone coated fabric:



Product Name: Silicone Coated Glass Fabric
Material: Silicone Rubber Coated Glass Fiber Fabric
Weight 1500 g/m2
Thickness 1.7 mm
Width 920mm
Coated Silicone 2 sides
Color Red/Black
Fire resistance Good
Working temperature Basic fabric 55ºC, Silicone coating 260 ºC.
Pattern Satin
Fiberglass Silica



Type Thickness

Breaking Strength

(N/50mm)

Burst Strength

Mpa

Peeling Strength

N/m

Flame

Retardant

Weight

g/m2

warp weft
SRC-0.3 0.30+0.03 ≥1800 ≥1400 ≥1.2 ≥450 FV-0 470+50
SRC-0.5 0.50+0.05 ≥2000 ≥1600 ≥2.0 ≥450 FV-0 640+60
SRC-1.1 1.10+0.10 ≥3800 ≥3400 ≥2.6 ≥450 / 1700+170
SRC-1.5 1.50+0.10 ≥3200 ≥2800 ≥3.0 ≥450 / 2300+230



2. Characteristics of 260 ºC Silicone Coated Fabric


 Silicone Coated Fiberglass Fabric has special characteristic, such as high temperature-resistance, ventilate-resistance, and fine high temperature-resistance, and Silicone Coated Fiberglass Fabric is very soft and tenacious, so Silicone coated fabric can apply in the fields of aerospace, chemistry and big electrical equipments, machinery and metallurgy.



3.Reserve & Transport



Reserve in the environment when the temperature between 0 and 40C, the humidity is bigger than 75% . far away from the heat source. Avoids with the acid and alkali and to the rubber harmful special material contact. In the transportation, prevents the extrusion.



4.The color of Silicone coated fabric:

Red. silver gray and black. can according to the customer specific request to production.



5.Packing of Silicone coated fabric :

50M/ROLL.packing by pvc bag.
