Product Details:
|
Material: | Silicone Rubber And Fiberglass Fabric | Working Temperature: | 220 Degrees Celsius |
---|---|---|---|
Colour: | Red,Black,Gray,White And So On | Roll Length: | 50 Metres Per Roll |
Thickness: | 1.2mm | Width: | 1000mm/1200mm |
Package: | PVC Package | Silicone Side: | Double Sides |
Highlight: | 1.2mm silicone fiberglass cloth,anti electric silicone fiberglass cloth,anti electric silicone coated cloth |

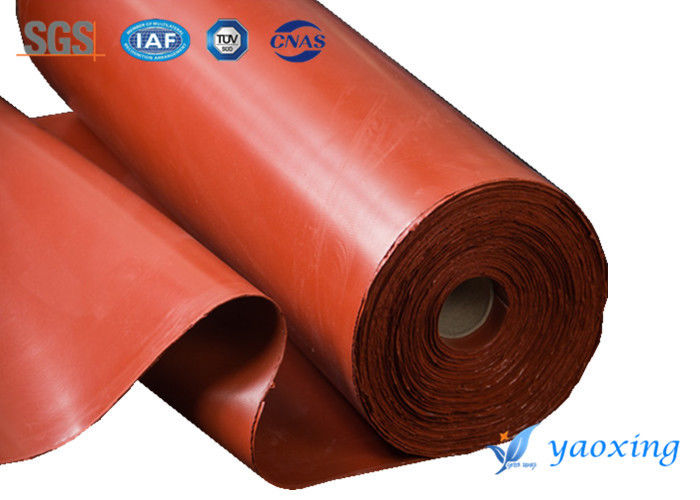

Fireproof And High Temperature Resistant Silica Gel Cloth For Thermal Power Stations
1, Description:
Silicone coated glass fiber fabric is made of glass fiber base fabric, and is impregnated or coated with a special mixed silicone rubber on one or both sides, thereby enhancing the anti-electric strength, fire resistance, high temperature insulation, ozone, Oxygen, sunshine weather and oil resistance.
2, Specifications:
Style | Thickness (mm) |
Weight (g/m2) |
Color | Base Cloth (g/m2) |
Weaving Way |
1 | 0.4 | 520 | gray | 310/3731 | twill |
2 | 0.5 | 580 | gray | 430/3732 | satin |
3 | 0.8 | 1000 | gray | 830/3784 | satin |
4 | 1.1 | 1600 | black | 880/3788 | satin |
5 | 1.2 | 1600 | red | 880/3788 | satin |
6 | 1.3 | 1550 | gray | 880/3788 | satin |
7 | 1.3 | 1650 | black | 880/2788 | satin |
8 | 1.5 | 2000 | red | 880/3788 | satin |
9 | 1.6 | 2350 | black | 1350 | satin |
Advantage with silicone rubber and fiberglass fabric:
1. -70°C-280°C high temperature resistance, good low temperature performance;
2. High strength;
3. Resistance to ozone, oxidation, light and weathering and aging;Working temperature is -70°C-300°C
Working temperature is -70°C-300°C
With fire resistance, heat insulation, water resistance, sunlight and weathering aging, the weather resistance can be up to 10 years when used outdoors and in age
Highly insulated
Physical and chemical properties
Application:
Used as welding protective agent, thermal insulation quilt
Machine conveyor belt
Chemical resistance, packaging material
Used in aerospace, shipbuilding, chemical industry, power plants, automobiles, construction, pipeline flexibility and sealing industries.
