Product Details:
|
| Material: | Silicone Rubber And Fiberglass Fabric | Working Temperature: | 220 Degrees Celsius |
|---|---|---|---|
| Colour: | Red，Black,Gray,White And So On | Roll Length: | 50 Metres Per Roll |
| Thickness: | 1.2mm | Width: | 1000mm/1200mm |
| Package: | PVC Package | Silicone Side: | Double Sides |
| High Light: | 1.2m Width Silicone Fiberglass Fabric,1m Width Silicone Fiberglass Fabric,Ozone Resistant Silicone Fiberglass Cloth |
||

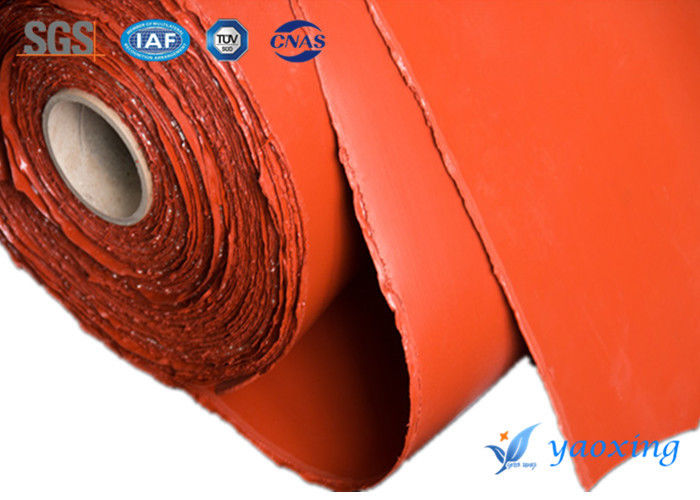

Silica Gel Cloth For Soft Connection Of Ventilation Ducts
1, Description:
Silicone rubber and fiberglass fabric is a material composed of two different qualities. Compared with fabrics with only one side, they have relatively different material properties, and are particularly strong and firm. There are usually two material components: a special synthetic material layer (matrix) and fibers (mainly glass fibers), which are used to incorporate into the matrix. The overall geometry and material characteristics of the material layer play an important role in the quality of the produced material. Composite materials are mainly used in aviation, aircraft and automobile industries, and shipbuilding. In order to process composite materials and transform them into different shapes, Steinbach AG silicone resin membranes are used as a means of separation and processing.
2, Specifications:
| Thickness(mm) | Colour | Width(m) | Length(m/roll) | Working Temperature(℃) |
Gram per square meter (g/m2) |
MOQ |
| 1.0 | Red/Black and so on | 1/1.2 | 50 | 250 | 1650 | negotiable |
| 1.5 | Red/Black and so on | 1/1.2 | 50 | 250 | 2450 | negotiable |
| 2.0 | Red/Black and so on | 1/1.2 | 50 | 250 | 3300 | negotiable |
| 2.5 | Red/Black and so on | 1/1.2 | 50 | 250 | 4100 | negotiable |
| 3.0 | Red/Black and so on | 1/1.2 | 25 | 250 | 4800 | negotiable |
Advantage with silicone rubber and fiberglass fabric:
1. -70°C-280°C high temperature resistance, good low temperature performance;
2. High strength;
3. Resistance to ozone, oxidation, light and weathering and aging;
4. High insulation: dielectric constant: 3-3.2, breakdown voltage: 20-50KV / MM;
5. Chemical resistance, oil and water resistance (washable)
More with Silicone Fiberglass Fabric
Fiber reinforced materials are essential to the composite structure, but not necessarily the key part used in the present invention. The woven mat of glass fiber or carbon fiber gives the composite material good strength, and the woven structure is easy to impregnate the matrix resin precursor and is easy to coat the interlayer resin precursor. Without changing the basic strategy of the present invention, other forms and fiber compositions can be used.
