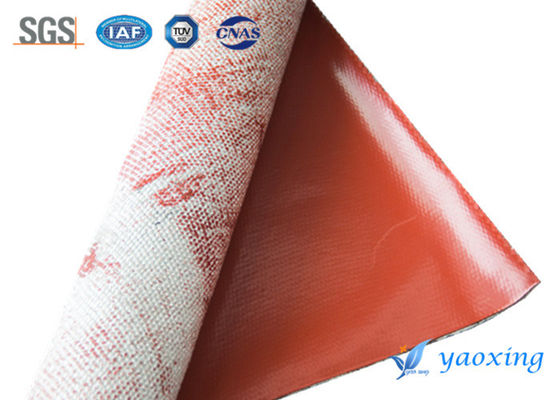

Thickness 3.0mm Silicone Coated Heat Resistant Fiberglass Cloth

Thickness 3.0mm Silicone Coated Heat Resistant Fiberglass Cloth
Thickness 3.0mm Silicone Coated Heat Resistant Fiberglass Cloth

Large Image :  Thickness 3.0mm Silicone Coated Heat Resistant Fiberglass Cloth

Product Details:
Place of Origin: CHINA
Brand Name: YAOXING
Certification: SGS
Model Number: SRC3.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: pvc package
Delivery Time: 5 work days
Supply Ability: 30000 metres per month

Thickness 3.0mm Silicone Coated Heat Resistant Fiberglass Cloth

Description
Material: Silicone Rubber And Fiberglass Fabric Working Temperature: 220 Degrees Celsius
Colour: Red,Black,Gray,White And So On Roll Length: 50 Metres Per Roll
Thickness: 3.0mm Width: 1000mm/1200mm
Package: PVC Package Silicone Side: Double Sides
High Light:

Silicone Coated Heat Resistant Fiberglass Cloth

,

Thickness 3.0mm Heat Resistant Fiberglass Cloth

,

Thickness 3.0mm Silicone Fiberglass Fabric

High Temperature And Fire Resistant Cloth For Steelmaking With Good Resistance To Aging



1, Description:



Silicone rubber and fiberglass fabric is a material composed of two different qualities. Compared with fabrics with only one side, they have relatively different material properties, and are particularly strong and firm. There are usually two material components: a special synthetic material layer (matrix) and fibers (mainly glass fibers), which are used to incorporate into the matrix. The overall geometry and material characteristics of the material layer play an important role in the quality of the produced material. Composite materials are mainly used in aviation, aircraft and automobile industries, and shipbuilding. In order to process composite materials and transform them into different shapes, Steinbach AG silicone resin membranes are used as a means of separation and processing.



2, Specifications:





Style Thickness
(mm)
Weight
(g/m2)
Color Base Cloth
(g/m2)
Weaving Way
1 0.4 520 gray 310/3731 twill
2 0.5 580 gray 430/3732 satin
3 0.8 1000 gray 830/3784 satin
4 1.1 1600 black 880/3788 satin
5 1.2 1600 red 880/3788 satin
6 1.3 1550 gray 880/3788 satin
7 1.3 1650 black 880/2788 satin
8 1.5 2000 red 880/3788 satin
9 1.6 2350 black 1350 satin



Advantage with silicone rubber and fiberglass fabric:



1. -70°C-280°C high temperature resistance, good low temperature performance;
2. High strength;
3. Resistance to ozone, oxidation, light and weathering and aging;
4. High insulation: dielectric constant: 3-3.2, breakdown voltage: 20-50KV / MM;
5. Chemical resistance, oil and water resistance (washable)



Application scope



Mechanism used for car carburetor;
Carry out the application of gas control and valve equipment;
L.P.G. Methane gas actuators and regulators;
Leak-proof and flame-retardant management of diesel pumps and temperature control and sealing treatment of other fuel pumps;
Gas and fuel metering equipment for more accurate calculations;







Thickness 3.0mm Silicone Coated Heat Resistant Fiberglass Cloth 0
