Product Details:
|
| Material: | Silicone Rubber And Fiberglass Fabric | Working Temperature: | 220 Degrees Celsius |
|---|---|---|---|
| Colour: | Red，Black,Gray,White And So On | Roll Length: | 50 Metres Per Roll |
| Thickness: | 3.0mm | Width: | 1000mm/1200mm |
| Package: | PVC Package | Silicone Side: | Double Sides |
| High Light: | Silicone Rubber Fiberglass Fabric Roll,50m Fiberglass Fabric Roll,50m Fiberglass Cloth Roll |
||

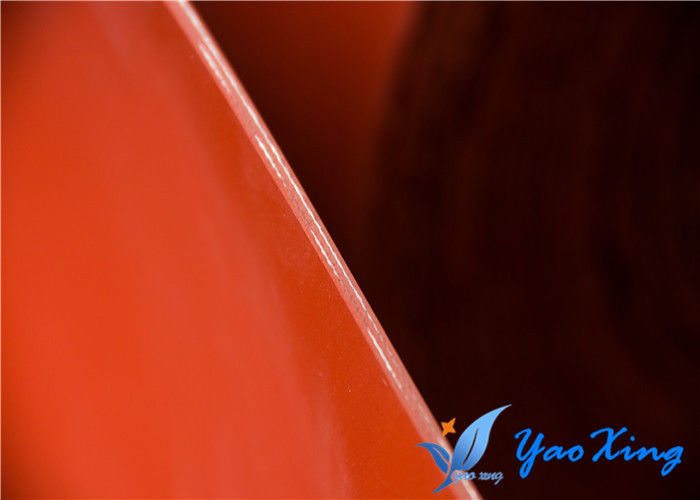

Three Layers Silicone Rubber Compound Two Layers Fiberglass Used As High Temperature Resistant Gasket
1, Description:
Silicone rubber and fiberglass fabric is a material composed of two different qualities. Compared with fabrics with only one side, they have relatively different material properties, and are particularly strong and firm. There are usually two material components: a special synthetic material layer (matrix) and fibers (mainly glass fibers), which are used to incorporate into the matrix. The overall geometry and material characteristics of the material layer play an important role in the quality of the produced material. Composite materials are mainly used in aviation, aircraft and automobile industries, and shipbuilding. In order to process composite materials and transform them into different shapes, Steinbach AG silicone resin membranes are used as a means of separation and processing.
2, Specifications:
| Style | Thickness (mm) |
Weight (g/m2) |
Color | Base Cloth (g/m2) |
Weaving Way |
| 1 | 0.4 | 520 | gray | 310/3731 | twill |
| 2 | 0.5 | 580 | gray | 430/3732 | satin |
| 3 | 0.8 | 1000 | gray | 830/3784 | satin |
| 4 | 1.1 | 1600 | black | 880/3788 | satin |
| 5 | 1.2 | 1600 | red | 880/3788 | satin |
| 6 | 1.3 | 1550 | gray | 880/3788 | satin |
| 7 | 1.3 | 1650 | black | 880/2788 | satin |
| 8 | 1.5 | 2000 | red | 880/3788 | satin |
| 9 | 1.6 | 2350 | black | 1350 | satin |
Application scope
Mechanism used for car carburetor;
Carry out the application of gas control and valve equipment;
L.P.G. Methane gas actuators and regulators;
Leak-proof and flame-retardant management of diesel pumps and temperature control and sealing treatment of other fuel pumps;
Gas and fuel metering equipment for more accurate calculations;
Advantage with silicone rubber and fiberglass fabric:
1. The glass fiber cloth has good certified fire resistance.
2. In addition to gray and red, it also provides more color options
3. Very easy to sew, make and cut.
4. Possess good abrasion resistance.
5. Good tensile strength.
