Product Details:
|
Product Name:: | Silicone Coated Glass Fabric | Thickness:: | 0.5-3.5mm |
---|---|---|---|
Material:: | Silicone And Fiberglass | Features:: | Insulated,Heat Resistant,Corrosion Resistant |
Knitting Type: | Twill Woven | Application: | Fire Proof |
Temperature Resistance:: | -70℃-280℃ | Color:: | Red,Black,White,Gray And So On |
Length:: | 50m/roll | Certification: | SGS |
Highlight: | 0.42mm Silicone Coated Fiberglass Cloth,Twill Woven Silicone Coated Fiberglass Cloth,fireproof silicone fiberglass cloth |

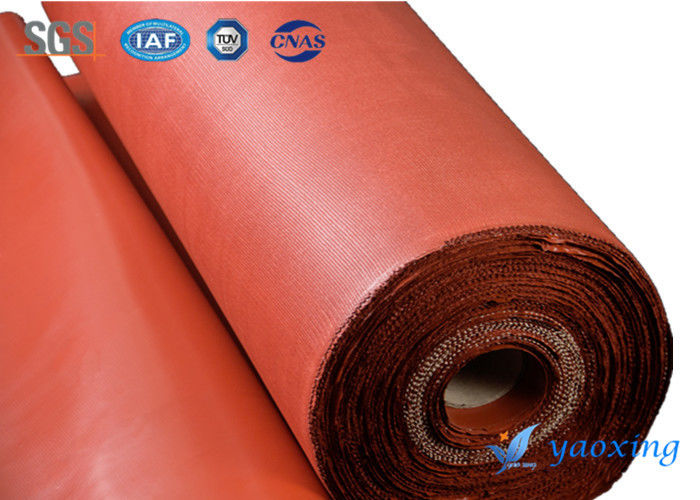

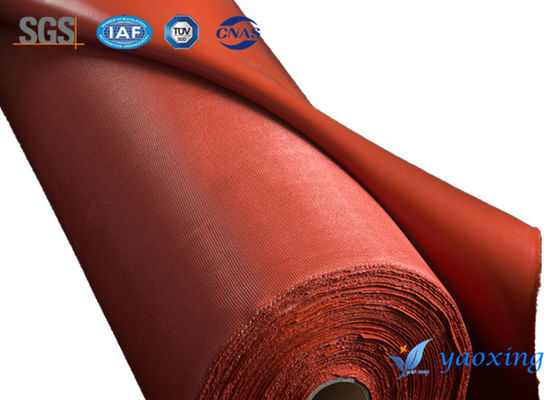

0.42mm Coated Silicon Cloth Silicone Coated Fiberglass Cloth
1.Scope of application:
Silicone rubber compound fiberglass cloth is a new material.It has very good aging resistance and fireproof performance.Our customers use it in many occasions.
1. Conveyor belts
Silicone calender coated fabric has superior smooth surface,heat resistant property,anti-corrosive property and strong mechanical strength,so it can be made into conveyor belts for heat and corrosive and corrosive working environment.
2. Expansion joint (compensator)
Due to the soft surface and can be cut.It can be made of joint.We can use it outside door because of the aging resistance.
3. Fire doors
Silicone rubber compound fiberglass cloth have good fireproof performance.So we can use it to make fire doors.We can produce many specifications according customs requirement.
4.Cushion for pressure lamination
Silicone fabric can be used in industrial to resist high pressure because of the softness of silicone.
2. Specification with Silicone Coated Fiberglass Cloth:
Product Name: | Silicone Coated Fiberglass Cloth |
Material: | Silicone Rubber Coated Glass Fiber Fabric |
Weight | 1500 g/m2 |
Thickness | 0.5-3.5 mm |
Width | 920mm |
Coated | Silicone 2 sides |
Color | Red/Black |
Fire resistance | Good |
Working temperature | Basic fabric 55ºC, Silicone coating 260 ºC. |
Pattern | Satin |
Fiberglass | Silica |
Product Name | Thickness(mm) | Coating | Length(m/roll) | Width(m) | Colour | Gram per square meter | MOQ |
Silicone coated glassfiber fabric | 0.43 | Single Side/Double Sides | 100 | 1/1.2/1.5/1.8 | Gray/Red and so on | 560 | negotiable |
Silicone coated glassfiber fabric | 0.8 | Single Side/Double Sides | 50 | 1/1.2/1.5 | Gray/Red and so on | 1040 | negotiable |
Calendered silica gel cloth | 1.1 | Single Side | 50 | 1/1.2 | Red/Black and so on | 1900 | negotiable |
Calendered silica gel cloth | 1.5 | Single Side | 50 | 1/1.2 | Red/Black and so on | 2560 | negotiable |
Calendered silica gel cloth | 1.5 | Double Sides | 50 | 1/1.2 | Red/Black and so on | 2460 | negotiable |
Calendered silica gel cloth | 2.0 | Single Side | 50 | 1/1.2 | Red/Black and so on | 2800 | negotiable |
Calendered silica gel cloth | 2.0 | Double Sides | 50 | 1/1.2 | Red/Black and so on | 3300 | negotiable |
Calendered silica gel cloth | 3.0 | Double Sides | 25 | 1/1.2 | Red/Black and so on | 4800 | negotiable |
2. Application:
1. Fire doors
2. Welding blankets and Fire blankets
3. Insulation Jacket
4. Flexible fire joint
5. Fire ventilation ducts
3.Reserve & Transport
When the temperature is between 0 and 40C and the humidity is greater than 75%, it remains in the environment. Silicone Coated Fiberglass Fabric need Keeping away from heat sources. Silicone Coated Fiberglass Fabric Avoid contact with acids and alkalis and special substances harmful to rubber. During transportation, prevent extrusion.
4.The color of Silicone Coated Fiberglass Cloth
Silicone coated fabric can according to the customer specific request to production.
5.Packing
50M/ROLL.packing by pvc bag.
