Product Details:
|
| Product Name:: | Silicone Fiberglass Fabric | Thickness:: | 0.1 Mm-3 Mm |
|---|---|---|---|
| Width: | 1 M, 1.2 M, 1.5 M | Advantages: | High Temperature Resistance |
| Material:: | Silicone Rubber And Fiberglass Fabric | Temperature Resistance:: | -70℃-280℃ |
| Color:: | Red | Silicone: | Silicone Side: |
| High Light: | 1.5m Silicone Fiberglass Fabric,Plain Woven Silicone Fiberglass Fabric,1.5m Silicone Coated Fiberglass Fabric |
||
1.5 M Silicone Fiberglass Fabric For High Temperature Resistance
1, Description:
Silicone coated fiberglass fabric have good aging resistance,fireproof and waterproof. It can also be used as anti-corrosive fabric.
Flexible silicone(Anti-corrosive fabric) fabric can be used for anti-corrosive liner for chemical storage tank,pipeline and others,it satisfy demands for limiting the loss of vapor and chemical compatibility which makes storage tank safer.
Thanks for the high mechanical strength,strong chemical resistant and heat resistant property,this silicone coated fabric is specially engineered to offer excellent reliability and long life time in storage,containment and chemical processing.
2.Specification with Silicone Coated Glass Fabric:
| Type | Silicone Fiberglass Fabric For High Temperature Resistance |
|
Thickness |
0.2mm-0.8mm
|
|
Width
|
1 m, 1.2 m, 1.5 m, 2 m
|
|
Roll length
|
50m, 100m
|
|
Knitting type
|
Plain woven/ twill woven
|
|
Side option
|
Single silicone cloth,Double-sided silicone cloth
|
|
Color
|
White, Black, Grey, Red
|
| Thickness(mm) | Colour | Width(m) | Length(m/roll) | Working Temperature(℉) |
Gram per square meter (g/m2) |
Breaking Down Voltage (KV/MM) |
| 1.0 | Red/Black and so on | 1/1.2 | 50 | 500 | 1650 | 20 |
| 1.5 | Red/Black and so on | 1/1.2 | 50 | 500 | 2450 | 25 |
| 2.0 | Red/Black and so on | 1/1.2 | 50 | 500 | 3300 | 30 |
| 2.5 | Red/Black and so on | 1/1.2 | 50 | 500 | 4100 | 40 |
| 3.0 | Red/Black and so on | 1/1.2 | 25 | 500 | 4800 | 50 |
Application
Due to the high dielectric strength and superior breakdown voltage of silicone calender fabric,this silicone fabric can be made into electric insulation mat,electric insulation cover and others,in order to resist the high voltage or offer insulation protection.
characteristics:
1,used in the temperature form -70℃ to 230℃
2,resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years
3,high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
4,good flexibility and high surface friction
5,chemical corrosion resistance
Silicone-impregnated fiberglass fabric is highly flexible and provides an excellent protection fabric used in insulating blankets and other heat resistant parts. Silicone coating has added water and oil resistance and low smoke and flame retardant. Although the base fiberglass fabric has a rating of 1000°F/550°C, the silicone coating is rated for a continuous 550°F/287°C. The Silicone Coated Fiberglass Fabric provides good flexibility, puncture, and tear resistance. This fabric's dry surface does not stick to the sewing table, making it easier to sew, drape, and handle.

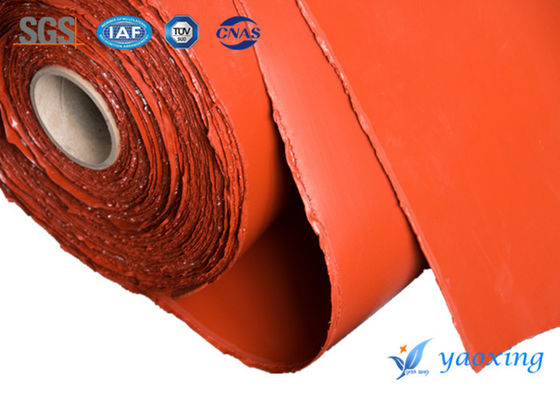

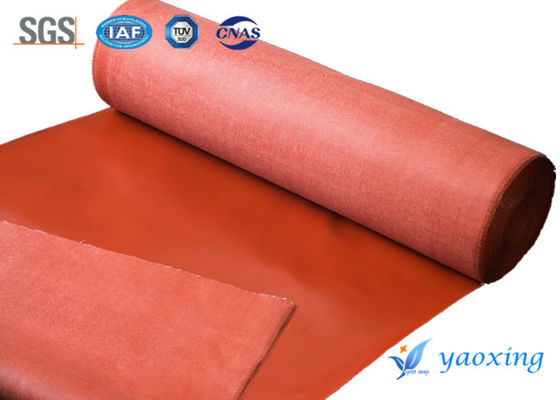

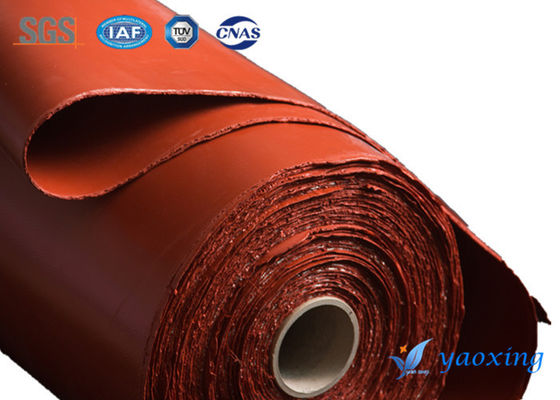

More picture with fiberglass fabric roll:
