Product Details:
|
| Product Name:: | Outdoor Extending Silicone Coated Glass Fabric | Thickness:: | 0.1 Mm-3 Mm |
|---|---|---|---|
| Width: | 1 M, 1.2 M, 1.5 M | Advantages: | Good Insulation, Heat Resistance |
| Material:: | Silicone Rubber And Fiberglass Fabric | Features:: | Water Proof |
| Temperature Resistance:: | -70℃-280℃ | Color:: | Red |
| Length:: | 50m/roll | Silicone: | Silicone Side: |
| High Light: | Heat Resistant Silicone Coated Fiberglass Fabric,Silicone Coated Fiberglass Fabric 150m,Silicone Coated Fiberglass Cloth 200m |
||
100% Fiberglass Heat Resistance Silicone Coated Glass Fiber Fabric
1,The property of silicone calender cloth is as follows.
1. Heat resistant
2. High mechanical strength
3. Anti-aging
4. Soft and can be cut
High dielectric strength
2.Specification with Silicone Coated Glass Fabric:
| Type | Silicone Coated Fiberglass Cloth |
| Thickness | 0.1 mm-3 mm |
| Width | 1 m, 1.2 m, 1.5 m |
| Roll length | 50m, 100m, 150m, 200m |
| Knitting type | Plain woven/ Twill woven |
| Glass Yarn Type | E-Glass/ C-Glass |
| Advantages |
good insulation, heat resistance, corrosion resistance, high mechanical strength |
| Thickness(mm) | Colour | Width(m) | Length(m/roll) | Working Temperature(℉) |
Gram per square meter (g/m2) |
Breaking Down Voltage (KV/MM) |
| 1.0 | Red/Black and so on | 1/1.2 | 50 | 500 | 1650 | 20 |
| 1.5 | Red/Black and so on | 1/1.2 | 50 | 500 | 2450 | 25 |
| 2.0 | Red/Black and so on | 1/1.2 | 50 | 500 | 3300 | 30 |
| 2.5 | Red/Black and so on | 1/1.2 | 50 | 500 | 4100 | 40 |
| 3.0 | Red/Black and so on | 1/1.2 | 25 | 500 | 4800 | 50 |
Application
Due to the high dielectric strength and superior breakdown voltage of silicone calender fabric,this silicone fabric can be made into electric insulation mat,electric insulation cover and others,in order to resist the high voltage or offer insulation protection.
characteristics:
1,used in the temperature form -70℃ to 230℃
2,resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years
3,high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
4,good flexibility and high surface friction
5,chemical corrosion resistance
Cushion for pressure lamination
Silicone calender coated fabric has excellent smooth and soft surface,it can resist high temperature and has high mechanical strength.
Comparing to PTFE liner or PTFE pillow which is also for heat press release,silicone fabric can be used in industrial to resist higher pressure because of the softness of silicone.

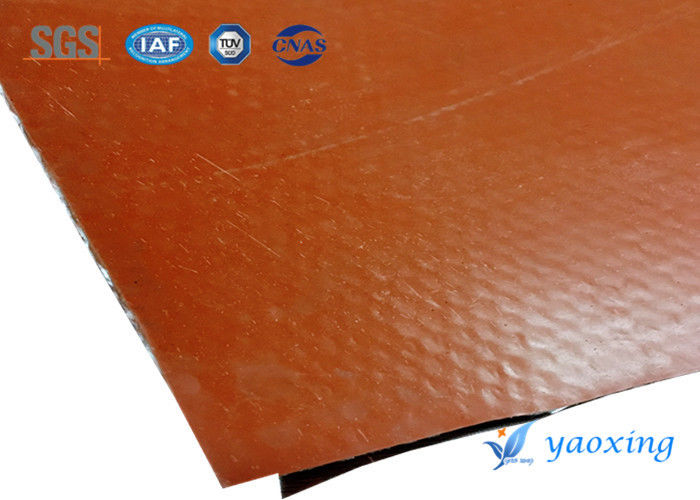

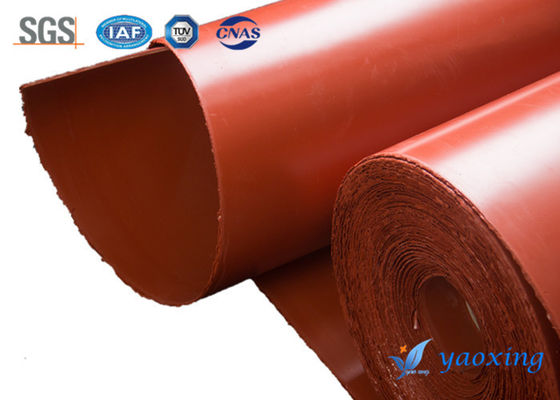

More picture with fiberglass fabric roll:
