Product Details:
|
| Product Name:: | Outdoor Extending Silicone Coated Glass Fabric | Thickness:: | 1.5mm,2.0mm,2.5mm,3.0mm |
|---|---|---|---|
| Material:: | Silicone Rubber And Fiberglass Fabric | Features:: | Water Proof |
| Temperature Resistance:: | -70℃-280℃ | Color:: | Red |
| Length:: | 50m/roll | Silicone: | Silicone Side: |
| High Light: | 300g/M2 Silicone Coated Glass Fabric,Silicone Coated Glass Fabric 2.0mm,Outdoor Extending Silicone Fiberglass Fabric |
||

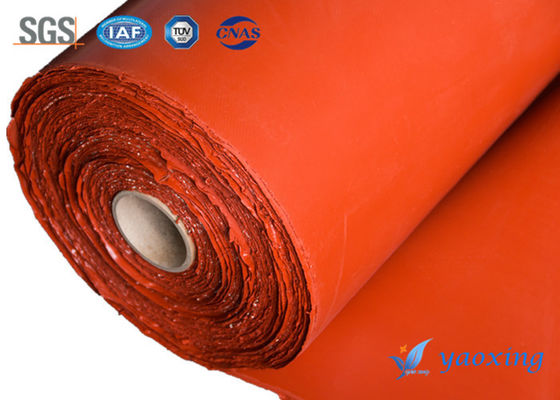

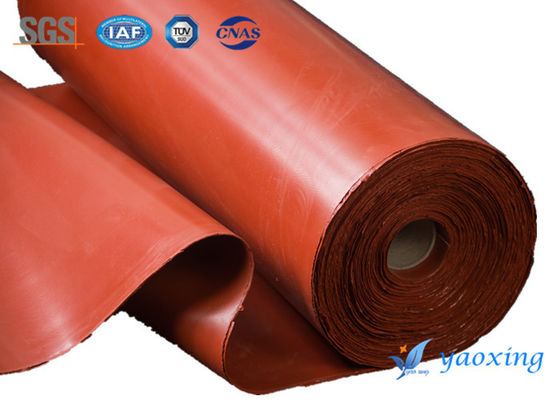

3300g M2 Outdoor Extending Silicone Coated Glass Fabric
1.description with Outdoor Extending Silicone Coated Glass Fabric:
Silicone rubber coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and is coated with organic silicone rubber. It is a newly-made-product with high properties and multiple applications. Due to its unique and excellent resistance to high-temperatures, permeability and aging, in addition to its durability, this fiberglass fabric is widely used in aerospace, chemical industry, large-scale generate electricity equipment, machinery, metallurgy, nonmetal expansion joint (compensator) and etc.
2.Specification with Silicone Coated Glass Fabric:
| Thickness(mm) | Colour | Width(m) | Length(m/roll) | Working Temperature(℉) |
Gram per square meter (g/m2) |
Breaking Down Voltage (KV/MM) |
| 1.0 | Red/Black and so on | 1/1.2 | 50 | 500 | 1650 | 20 |
| 1.5 | Red/Black and so on | 1/1.2 | 50 | 500 | 2450 | 25 |
| 2.0 | Red/Black and so on | 1/1.2 | 50 | 500 | 3300 | 30 |
| 2.5 | Red/Black and so on | 1/1.2 | 50 | 500 | 4100 | 40 |
| 3.0 | Red/Black and so on | 1/1.2 | 25 | 500 | 4800 | 50 |
3,characteristics:
1,used in the temperature form -70℃ to 230℃
2,resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years
3,high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
4,good flexibility and high surface friction
5,chemical corrosion resistance
Silicone calender coated fabric is designed to provide a excellent smooth surface,the silicone calender coated fabric offers increased tensile strength which allows for using in high temperature(continuously under 500 ℉)and strong pressure(maximum 1000PSI).
By thickness,we have two categories of products.One kind has a thickness of over 1mm and another kind has a thickness of below 1mm.You can choose the thickness by the occasion you use.

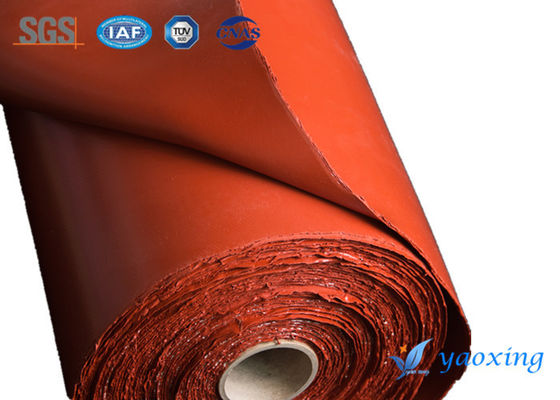

More picture with Solicone coated Fiberglass fabric:
