Product Details:
|
| Name:: | Solicone Coated Fiberglass Fabric | Thickness:: | 0.45mm~0.8mm |
|---|---|---|---|
| Material:: | Silicone Rubber And Fiberglass Fabric | Features:: | Heat Resistant |
| Temperature Resistance:: | -40~250ºC | Color:: | Red,Silver,Grey,Black Etc |
| Length:: | 50m/roll | Silicone: | Silicone Side |
| High Light: | 0.4MM Silicone Coated Fiberglass Fabric,Gray Twill Coated Fiberglass Fabric,50m/roll Silicone Coated Fabric |
||

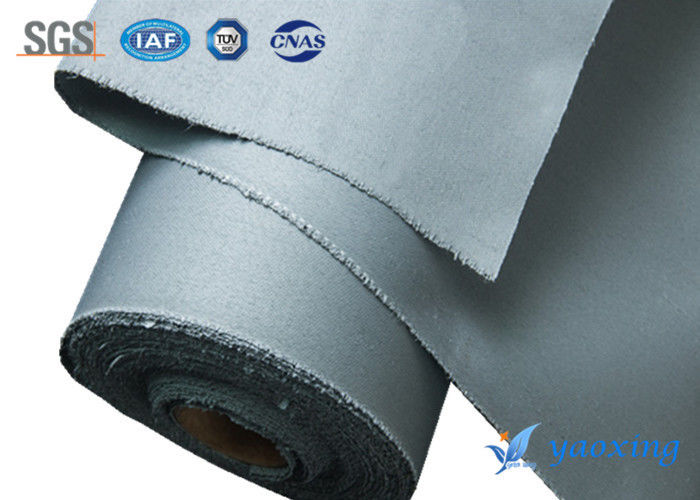

0.4 MM Gray Twill Silicone Rubber Coated Glass Fiber Fabric
1. Product Description
Single Side Silicone Coated Fiberglass Fabric(Cloth)
Silicone rubber has excellent properties of heat-resistance, high insulation and resistance to weathering, so it can be used as coating on the fiberglass fabric. With silicone rubber coating, the fabric will has new properties of high performance and multi-purpose material, like anti-ozone, oxygen, light and weathering. As per our experience, we do silicon rubber coating on one side or two sides of fiberglass fabric, the final area weight is 300-2500g/m2, width is 1-1.54m, supply it in roll or in tape as per client's requirement.
2.Application with Silicone Coated Fiberglass Fabric:
1.Electrical insulation. Silicone Coated Fiberglass Fabric With very high electrical insulation property, silicone coated glass fabric can stand high voltage load. It is suitable for making insulation cloth and insulating bush.
2.Non-metallic compensator. Silicone coated glass fabric can be produced as soft connecting part of pipe to avoid pipe broken caused by thermal expansion and contraction. With properties of thermal insulation, anti-corrosion, anti-aging and soft, silicone coated Silicone Coated Fiberglass Fabric is widely used in fields like oil, chemical industry, cement and energy sources.
3.Anti-corrosion. With very good anti-corrosive property, silicone coated Silicone Coated Fiberglass Fabric can be used as protection coating on pipe and saving box.
4.Other fields. Silicone coated glass fabric can also be used as building sealing material, high temperature corrosion resistant conveyor belt, packing material, etc.
3.Specification
| Style | Thickness (mm) |
Weight (g/m2) |
Color | Base Cloth (g/m2) |
Weaving Way |
| 1 | 0.4 | 520 | gray | 310/3731 | twill |
| 2 | 0.5 | 580 | gray | 430/3732 | satin |
| 3 | 0.8 | 1000 | gray | 830/3784 | satin |
| 4 | 1.1 | 1600 | black | 880/3788 | satin |
| 5 | 1.2 | 1600 | red | 880/3788 | satin |
| 6 | 1.3 | 1550 | gray | 880/3788 | satin |
| 7 | 1.3 | 1650 | black | 880/2788 | satin |
| 8 | 1.5 | 2000 | red | 880/3788 | satin |
| 9 | 1.6 | 2350 | black | 1350 | satin |
4. Guarantees with 0.8mm Silicone Coated Glass Fabric
All Yaoxing’s customers are covering by the warranty:
· Replacement. - In case of the quality of delivery was proved unsatisfied by our customer, Yaoxing will send out a new batch to replace without delaying.
· Timely delivery. - Yaoxing usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
· Cost-effective (low price). - Yaoxing understands the customers' requirements of continually lowering the purchase prices. All guys at Yaoxing keep in increasing work efficiency to reducing the production costs to meet the customers' requirements of costs reduction.
5. Usage:
smoke curtain, fabric expansion joints, fabric ductwork connect, insulation jackets, mattress, pad, fire doors, fire curtains, welding/fire blankets, heat protection quilt, expansion joints, packing materials, aerospace, marine, chemical industry, power plant, automobile manufacturer, construction, piping, oil plants
6. More picture:
