Product Details:
|
| Product Name:: | Silicone Coated Glass Fabric | Thickness:: | 0.5-3.5mm |
|---|---|---|---|
| Material:: | Silicone And Fiberglass | Features:: | Water Proof |
| Temperature Resistance:: | -70℃-280℃ | Color:: | Red,Black,White，Gray And So On |
| Length:: | 50m/roll | Width:: | 1m/1.2m |
| High Light: | Waterproof Silicone Coated Fiberglass Fabric,0.5mm Silicone Coated Fiberglass Fabric,50m/Roll Silicone Coated Fiberglass Fabric |
||

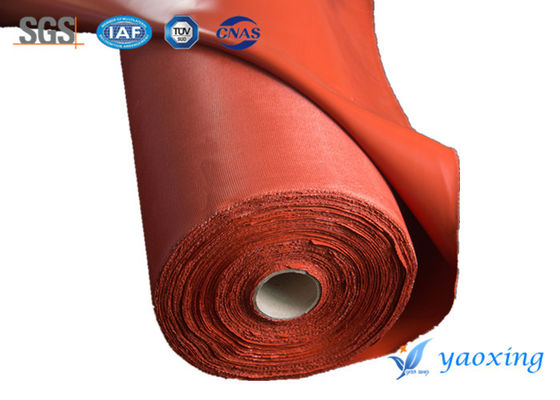

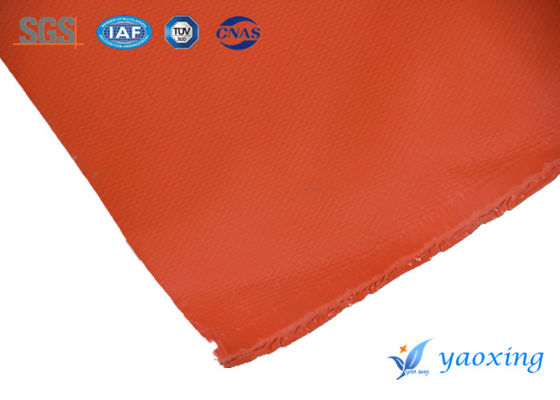

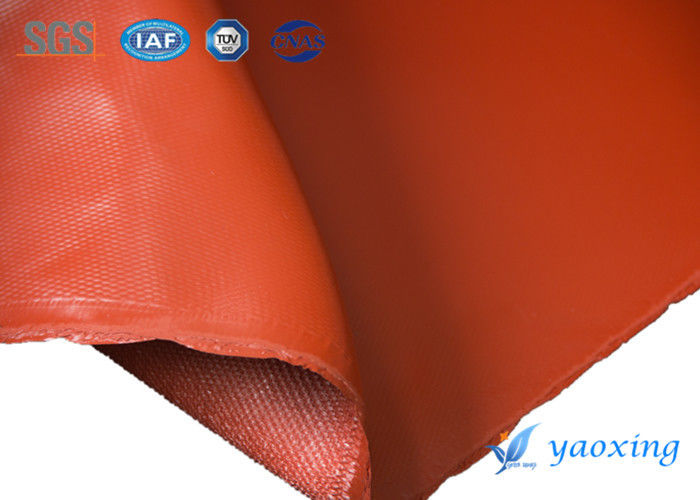

0.5-3.5mm Water Proof Silicone Coated Fiberglass Fabric
1.Description of Silicone Coated Fiberglass Fabric:
Fiberglass fabric coated with silicone rubber is made with the basal material of high temperature resistant fiberglass fabric and silicone rubber by follow-processing; it is a compound material with high quality of performance. It has been widely used in spaceflight, chemical industry, petroleum, large generating electricity equipment, machinery, metallurgy, electric insulation, construction and other fields.
2. Specification with Silicone Coated Fiberglass Fabric:
| Product Name: | Silicone Coated Fiberglass Fabric |
| Material: | Silicone Rubber Coated Glass Fiber Fabric |
| Weight | 1500 g/m2 |
| Thickness | 0.1 mm |
| Width | 920mm |
| Coated | Silicone 2 sides |
| Color | Red/Black |
| Fire resistance | Good |
| Working temperature | Basic fabric 55ºC, Silicone coating 260 ºC. |
| Pattern | Satin |
| Fiberglass | Silica |
| Type | Thickness |
Breaking Strength (N/50mm) |
Burst Strength Mpa |
Peeling Strength N/m |
Flame Retardant |
Weight g/m2 |
|
| warp | weft | ||||||
| SRC-0.3 | 0.30+0.03 | ≥1800 | ≥1400 | ≥1.2 | ≥450 | FV-0 | 470+50 |
| SRC-0.5 | 0.50+0.05 | ≥2000 | ≥1600 | ≥2.0 | ≥450 | FV-0 | 640+60 |
| SRC-1.1 | 1.10+0.10 | ≥3800 | ≥3400 | ≥2.6 | ≥450 | / | 1700+170 |
| SRC-1.5 | 1.50+0.10 | ≥3200 | ≥2800 | ≥3.0 | ≥450 | / | 2300+230 |
2. scope of application
Silicon rubber is a kind of fluorine macromolecule elasticity shell, which has the
performance of fine high temperature-resistance and insulation and longtime aging-resistance. After compounded with fiberglass, it is a kind of high function, useful and new material.
3.Features
-Excellent release properties
-High strength and tear resistance
-High dielectric strength
-High resistance to wear and flexing
-High chemical resistance, impervious to mild alkalies, non-oxidizing acids, most salts, mineral and lubricating oils, air, moisture and sunlight
-Operating temperature range from -70°C to +310°C
-Non-toxic odorless and tasteless
4.The color of Silicone Coated Fiberglass Fabric:
Silicone coated fabric can according to the customer specific request to production.

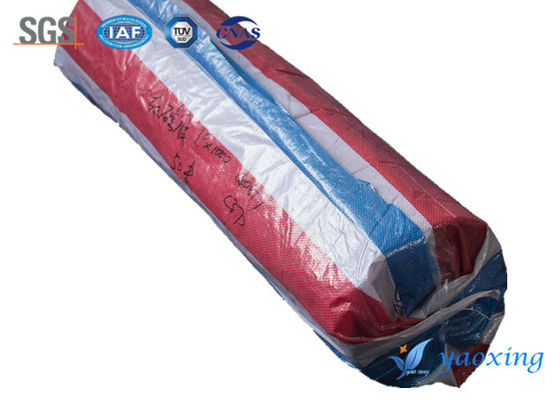

5.Packing of Silicone Coated Fiberglass Fabric :
50M/ROLL.packing by pvc bag.
