Product Details:
|
| Product Name:: | Silicone Coated Glass Fabric | Thickness:: | 0.5-3.5mm |
|---|---|---|---|
| Material:: | Silicone And Fiberglass | Features:: | Insulated,Heat Resistant,Corrosion Resistant |
| Knitting Type: | Twill Woven | Temperature Resistance:: | -70℃-280℃ |
| Color:: | Red,Black,White，Gray And So On | Length:: | 50m/roll |
| High Light: | Woven Silicone Coated Fiberglass Fabric,Twill Silicone Coated Fiberglass Fabric,3.5mm Silicone Coated Fiberglass Fabric |
||

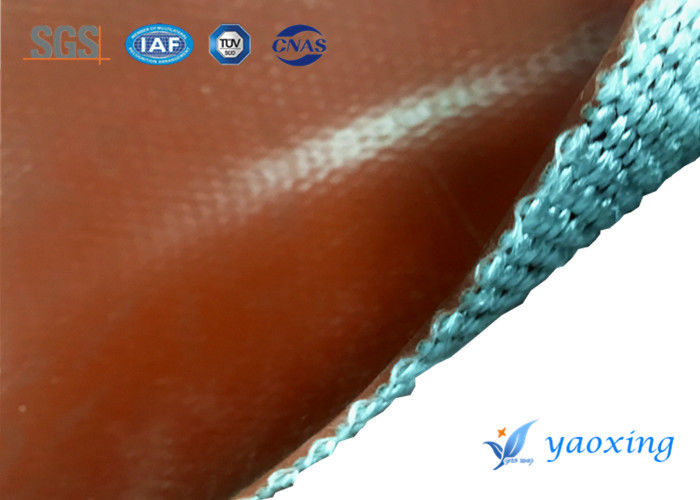

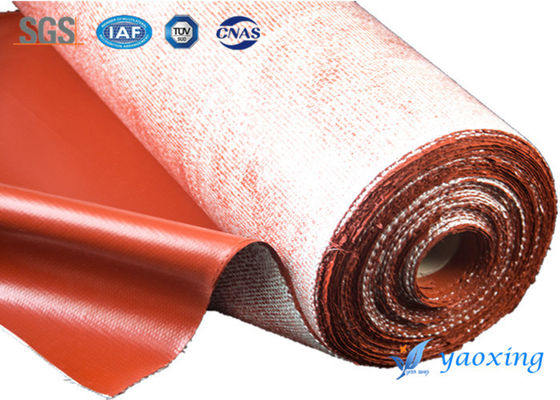

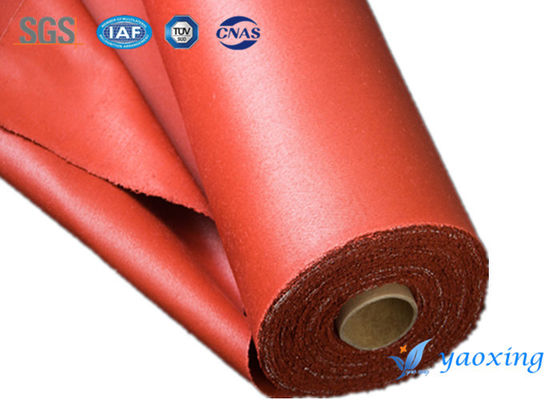

0.5-3.5mm Red Twill woven silicone coated fiberglass cloth
1.Scope of application:
Silicone coated fiberglass cloth has excellent properties of heat-resistance, high insulation and resistance to weathering, so it can be used as coating on the fiberglass fabric. With silicone rubber coating, Silicone Coated Fiberglass Fabric will has new properties of high performance and multi-purpose material, like anti-ozone, oxygen, light and weathering. As per our experience, we do silicon rubber coating on one side or two sides of fiberglass fabric, the final area weight is 300-2500g/m2, width is 1-1.54m, supply it in roll or in tape as per client's requirement.
2. Specification with Silicone Coated Fiberglass Fabric:
| Product Name: | Silicone Coated Fiberglass Fabric |
| Material: | Silicone Rubber Coated Glass Fiber Fabric |
| Weight | 1500 g/m2 |
| Thickness | 0.5-3.5 mm |
| Width | 920mm |
| Coated | Silicone 2 sides |
| Color | Red/Black |
| Fire resistance | Good |
| Working temperature | Basic fabric 55ºC, Silicone coating 260 ºC. |
| Pattern | Satin |
| Fiberglass | Silica |
| Type | Thickness |
Breaking Strength (N/50mm) |
Burst Strength Mpa |
Peeling Strength N/m |
Flame Retardant |
Weight g/m2 |
|
| warp | weft | ||||||
| SRC-0.3 | 0.30+0.03 | ≥1800 | ≥1400 | ≥1.2 | ≥450 | FV-0 | 470+50 |
| SRC-0.5 | 0.50+0.05 | ≥2000 | ≥1600 | ≥2.0 | ≥450 | FV-0 | 640+60 |
| SRC-1.1 | 1.10+0.10 | ≥3800 | ≥3400 | ≥2.6 | ≥450 | / | 1700+170 |
| SRC-1.5 | 1.50+0.10 | ≥3200 | ≥2800 | ≥3.0 | ≥450 | / | 2300+230 |
2. Application:
1.Electrical insulation. With very high electrical insulation property, silicone coated glass fabric can stand high voltage load. It is suitable for making insulation cloth and insulating bush.
2.Non-metallic compensator. Silicone coated glass fabric can be produced as soft connecting part of pipe to avoid pipe broken caused by thermal expansion and contraction. With properties of thermal insulation, anti-corrosion, anti-aging and soft, silicone coated glass fabric is widely used in fields like oil, chemical industry, cement and energy sources.
3.Anti-corrosion. With very good anti-corrosive property, silicone coated glass fabric can be used as protection coating on pipe and saving box.
4.Other fields. Silicone coated glass fabric can also be used as building sealing material, high temperature corrosion resistant conveyor belt, packing material, etc.
3.Reserve & Transport
When the temperature is between 0 and 40C and the humidity is greater than 75%, it remains in the environment. Silicone Coated Fiberglass Fabric need Keeping away from heat sources. Silicone Coated Fiberglass Fabric Avoid contact with acids and alkalis and special substances harmful to rubber. During transportation, prevent extrusion.
Properties are as follows:
Life-time: 10 years
Standing temperature: -40C to 250C deg
Dielectric constant: 3-3.2
Breakdown voltage: 20-50KV/MM
4.The color of Silicone Coated Fiberglass Fabric:
Silicone coated fabric can according to the customer specific request to production.
5.Packing of Silicone Coated Fiberglass Fabric :
50M/ROLL.packing by pvc bag.
