Product Details:
|
| Product Name:: | Silicone Coated Glass Fabric | Thickness:: | 0.1 Mm |
|---|---|---|---|
| Material:: | Silicone And Fiberglass | Features:: | Insulated,Heat Resistant,Corrosion Resistant |
| Temperature Resistance:: | -70℃-280℃ | Color:: | Red,Black,White，Gray And So On |
| Length:: | 50m/roll | Width:: | 1m/1.2m |
| High Light: | 0.1mm Silicone Coated Fiberglass Fabric,1.2m Silicone Coated Fiberglass Fabric,Insulated Silicone Coated Fiberglass Fabric |
||

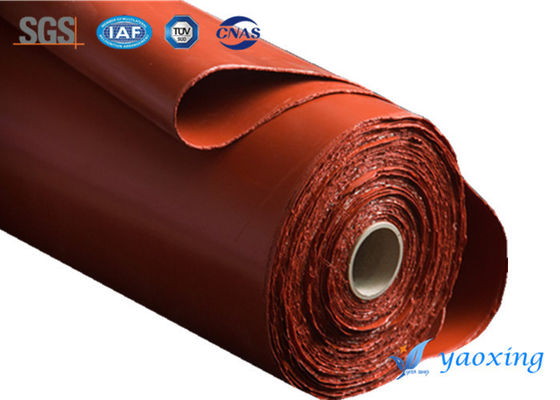

0.1 mm 100% Fiberglass Silicone Coated Fiberglass Fabric
1.Scope of application:
Silicone Coated Fiberglass Fabric is made of glass fiber cloth as base cloth and produced by coating or calendering. Silicone Coated Fiberglass Fabric is made of glass fiber cloth with high temperature resistance, corrosion resistance and high strength and is calendered or impregnated by organic silicon rubber. Silicone Coated Fiberglass Fabric is a new composite material product with high performance and multiple purposes.
2. Specification with Silicone Coated Fiberglass Fabric:
| Product Name: | Silicone Coated Fiberglass Fabric |
| Material: | Silicone Rubber Coated Glass Fiber Fabric |
| Weight | 1500 g/m2 |
| Thickness | 0.1 mm |
| Width | 920mm |
| Coated | Silicone 2 sides |
| Color | Red/Black |
| Fire resistance | Good |
| Working temperature | Basic fabric 55ºC, Silicone coating 260 ºC. |
| Pattern | Satin |
| Fiberglass | Silica |
| Type | Thickness |
Breaking Strength (N/50mm) |
Burst Strength Mpa |
Peeling Strength N/m |
Flame Retardant |
Weight g/m2 |
|
| warp | weft | ||||||
| SRC-0.3 | 0.30+0.03 | ≥1800 | ≥1400 | ≥1.2 | ≥450 | FV-0 | 470+50 |
| SRC-0.5 | 0.50+0.05 | ≥2000 | ≥1600 | ≥2.0 | ≥450 | FV-0 | 640+60 |
| SRC-1.1 | 1.10+0.10 | ≥3800 | ≥3400 | ≥2.6 | ≥450 | / | 1700+170 |
| SRC-1.5 | 1.50+0.10 | ≥3200 | ≥2800 | ≥3.0 | ≥450 | / | 2300+230 |
2. Characteristics
Silicone Coated Fiberglass Fabric has special characteristic, such as high temperature-resistance, ventilate-resistance, and fine high temperature-resistance, and Silicone Coated Fiberglass Fabric is very soft and tenacious, so Silicone coated fabric can apply in the fields of aerospace, chemistry and big electrical equipments, machinery and metallurgy.
3.Reserve & Transport
When the temperature is between 0 and 40C and the humidity is greater than 75%, it remains in the environment. Silicone Coated Fiberglass Fabric need Keeping away from heat sources. Silicone Coated Fiberglass Fabric Avoid contact with acids and alkalis and special substances harmful to rubber. During transportation, prevent extrusion.
Properties are as follows:
Life-time: 10 years
Standing temperature: -40C to 250C deg
Dielectric constant: 3-3.2
Breakdown voltage: 20-50KV/MM
4.The color of Silicone Coated Fiberglass Fabric:
Silicone coated fabric can according to the customer specific request to production.

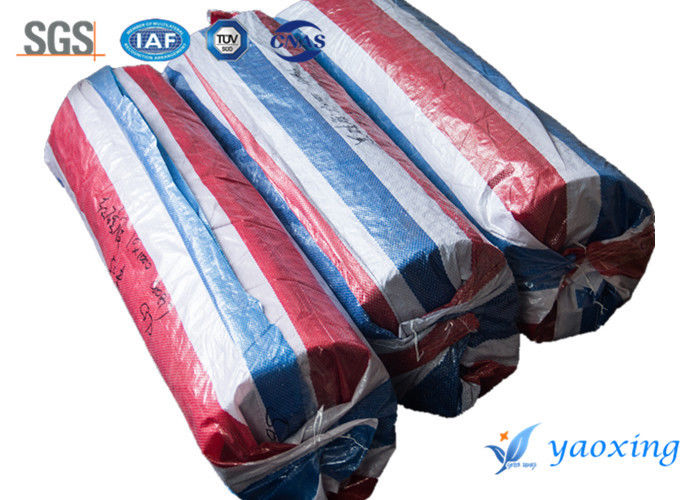

5.Packing of Silicone Coated Fiberglass Fabric :
50M/ROLL.packing by pvc bag.
