Product Details:
|
Product Name:: | Silicone Coated Glass Fabric | Material:: | Silicone And Fiberglass |
---|---|---|---|
Temperature Resistance:: | -70℃-280℃ | Color:: | Red,Black,White,Gray And So On |
Length:: | 50m/roll | Width:: | 1m/1.2m |
Highlight: | 0.30mm Silicone Coated Fiberglass Fabric,50m/Roll Silicone Coated Fiberglass Fabric,SGS Silicone Coated Fiberglass Fabric |

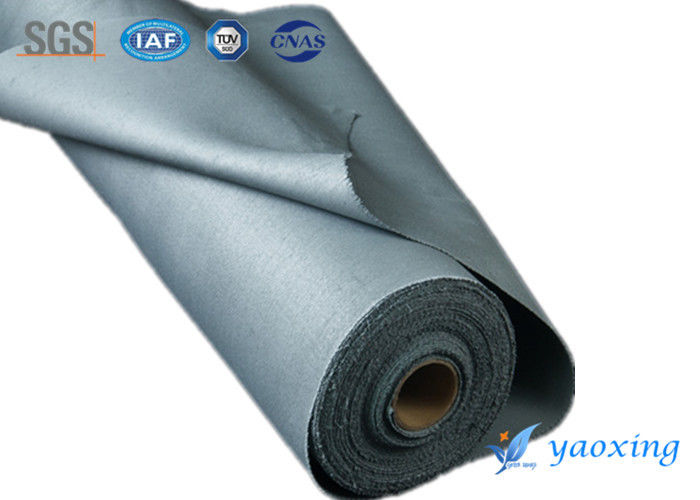

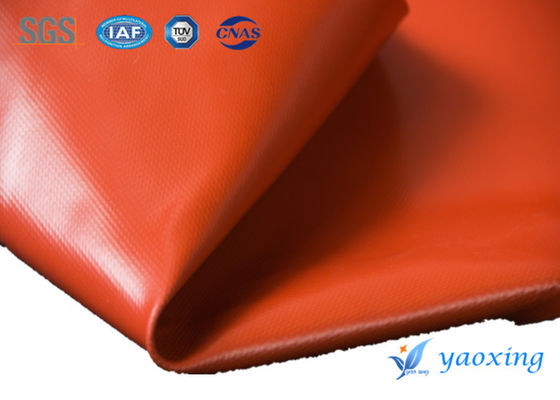

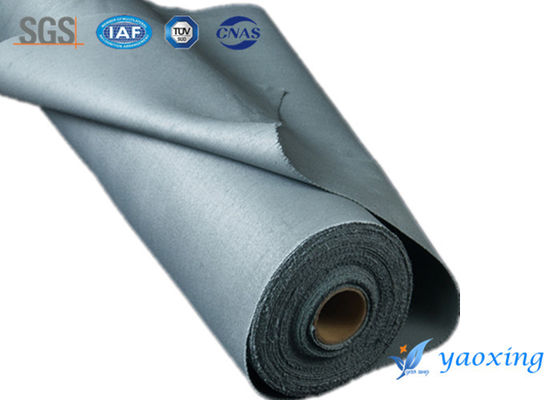

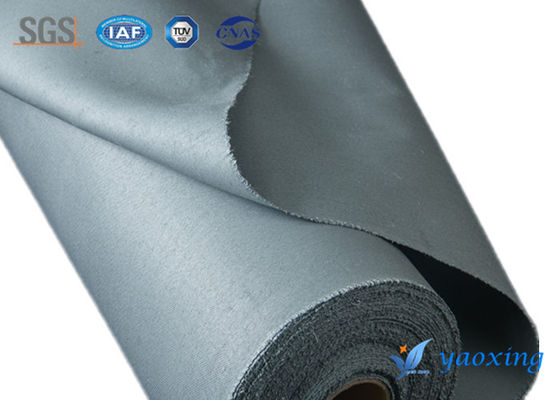

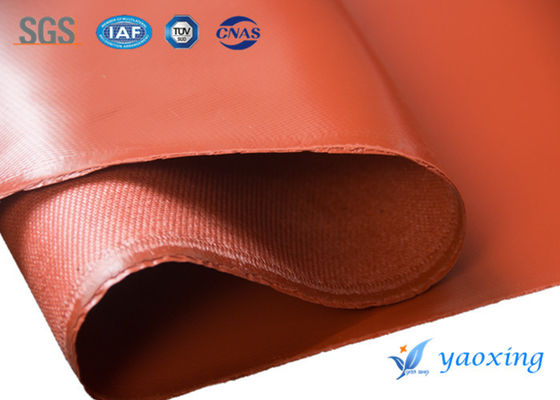

Thickness 0.30mm Fire Prevention 260 ºC Silicone Coated Fabric
1.Scope of application:
Silicon rubber is a kind of fluorine macromolecule elasticity shell, which has the performance of fine high temperature-resistance and insulation and longtime aging-resistance. After compounded with fiberglass, it is a kind of high function, useful and new material.
2. Specification with Silicone coated fabric:
Product Name: | Silicone Coated Glass Fabric |
Material: | Silicone Rubber Coated Glass Fiber Fabric |
Weight | 1500 g/m2 |
Thickness | 1.7 mm |
Width | 920mm |
Coated | Silicone 2 sides |
Color | Red/Black |
Fire resistance | Good |
Working temperature | Basic fabric 55ºC, Silicone coating 260 ºC. |
Pattern | Satin |
Fiberglass | Silica |
Type | Thickness |
Breaking Strength (N/50mm) |
Burst Strength Mpa |
Peeling Strength N/m |
Flame Retardant |
Weight g/m2 |
|
warp | weft | ||||||
SRC-0.3 | 0.30+0.03 | ≥1800 | ≥1400 | ≥1.2 | ≥450 | FV-0 | 470+50 |
SRC-0.5 | 0.50+0.05 | ≥2000 | ≥1600 | ≥2.0 | ≥450 | FV-0 | 640+60 |
SRC-1.1 | 1.10+0.10 | ≥3800 | ≥3400 | ≥2.6 | ≥450 | / | 1700+170 |
SRC-1.5 | 1.50+0.10 | ≥3200 | ≥2800 | ≥3.0 | ≥450 | / | 2300+230 |
2. Characteristics of 260 ºC Silicone Coated Fabric
Silicone Coated Fiberglass Fabric has special characteristic, such as high temperature-resistance, ventilate-resistance, and fine high temperature-resistance, and Silicone Coated Fiberglass Fabric is very soft and tenacious, so Silicone coated fabric can apply in the fields of aerospace, chemistry and big electrical equipments, machinery and metallurgy.
3.Reserve & Transport
Reserve in the environment when the temperature between 0 and 40C, the humidity is bigger than 75% . far away from the heat source. Avoids with the acid and alkali and to the rubber harmful special material contact. In the transportation, prevents the extrusion.
4.The color of Silicone coated fabric:
Red. silver gray and black. can according to the customer specific request to production.
5.Packing of Silicone coated fabric :
50M/ROLL.packing by pvc bag.
