Product Details:
|
| Material: | High Silica Yarn | Working Temperature: | 1000℃ |
|---|---|---|---|
| Color: | White And Brown | Roll Length: | 50m |
| Thickness: | 0.3-1.1mm | Width: | 860mm/920mm/1000mm |
| High Light: | boat fiberglass cloth,composite boat building materials,High Silica Fiberglass Cloth |
||

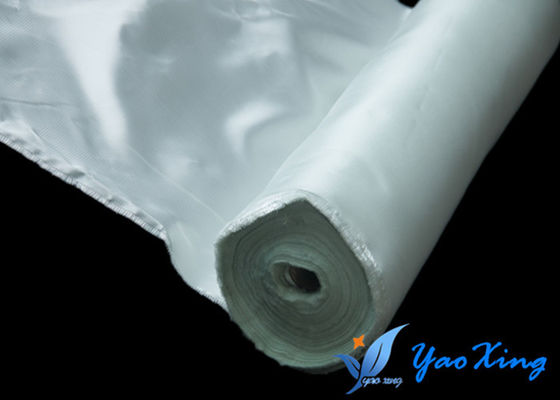

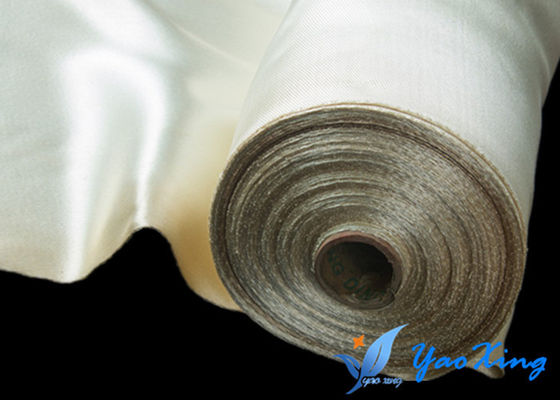

High Silica Fiberglass Fabric For Heat Resistance and Curtain
Application:
-Welding blanket and fire curtains
-High temperature resistant,thermal protection and fire protection
- Protective shields during welding works
Product Description
High silica Fabric by Changshu Yaoxing Fiberglass Insulation Products Co., Ltd has excellent chemical stability ,high temperature resisitance and good electrical insulation,it is widely used in extremely high temperature environment.
Technical data:
| 1 | WEAVE | SATIN 8HS | Testing Method | ||
| 2 | Width | 92cm | 36.2inch | DIN EN 1773 | |
| 100cm | 39.4inch | ||||
| 86cm | 33.1inch | ||||
| 3 | SiO2 Content | ≥96% | - | ||
| 4 | Linear shrinkage ( 1000C 30min) | <7.10% | - | ||
| 5 | Area Shrinkage( 1000C 30min) | <13.0% | - | ||
| 6 | Color | White / Golden | - | ||
| 7 | Thichness | 1.3±0.1mm | 0.051inch | DIN EN ISO 5084 | |
| 8 | Threatment | Hydrochloric acid treatment | - | ||
| 9 | Weight | 1100g/m2 | 32.4OZ/YD2 | DIN EN 12127 | |
| 10 | Thread count | WARP | 20 per cm | 51 per inch | DIN EN 1049-2 |
| WEFT | 15 per cm | 38 per inch | DIN EN1049-2 | ||
| 11 | Tensile strength | WARP | ≥1100 | EN ISO 13934-1 | |
| N/Inch | WEFT | ≥900 | EN ISO 13934-1 | ||
| 12 | Service temperature | Up to 1100ºC | - | ||
High silica fiberglass fabric,High silica cloth, High silica products
