Product Details:
|
Material: | Silicone Rubber And Fiberglass | Working Temperature: | 220 ℃ |
---|---|---|---|
Colour: | Red,Black,Gray,White And So On | Roll Length: | As Customers Requirement |
Thickness: | 0.4mm-1.5mm | Width: | 1000mm-1800mm |
Package: | PVC Bags And Pallets | Substrate: | HT800 Fiberglass Fabric Or 3732 Fiberglass Fabric |
Highlight: | silicone impregnated fiberglass cloth,silicone coated glass fiber fabric,High Temperature Resistance Silicone Glass Cloth |

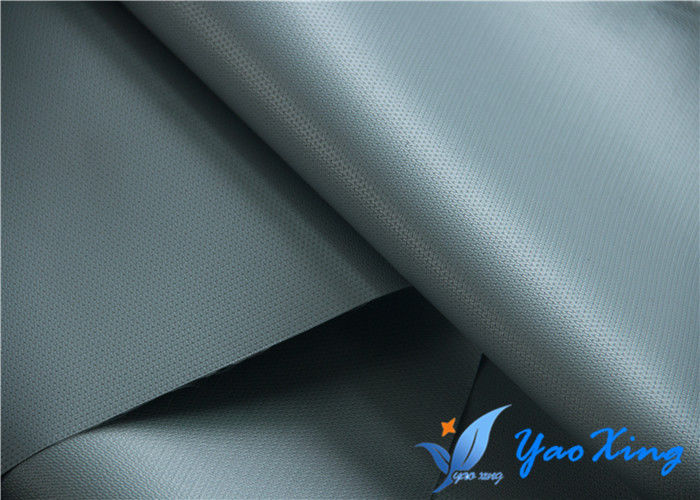

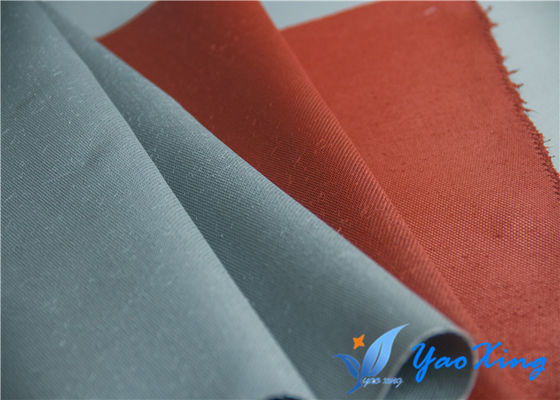

High Temperature Resistance Silicone Coated Fiberglass Cloth By Chinese Factory
Application:
1. Electrical insulation. With very high electrical insulation property, silicone coated glass fabric can stand high voltage load. It is suitable for making insulation cloth and insulating bush.It is a good insulation material.
2. Non-metallic compensator. Silicone coated glass fabric can be produced as soft connecting part of pipe to avoid pipe broken caused by thermal expansion and contraction. With properties of thermal insulation, anti-corrosion, anti-aging and soft, silicone coated glass fabric is widely used in fields like oil, chemical industry, cement and energy sources.Silicone coated fiberglass cloth have a very good performance in there field.
3. Anti-corrosion. With very good anti-corrosive property, silicone coated glass fabric can be used as protection coating on pipe and saving box.We can find it everywhere.
4. Other fields. Silicone coated glass fabric can also be used as building sealing material, high temperature corrosion resistant conveyor belt, packing material, etc.
Detail:
1. We use HT800/#660/3732 fiberglass fabric as its basic fabric.There fabrics can resist 550℃.
2. There are two different specifications:single side silicone coated fiberglass fabric and double sides silicone coated fiberglass fabric.
3. Our customers can confirm color with our sales man.We can produce many different kind of colourful silicone coated fiberglass fabric.
4. We can pack as customers requirement.
Question:
1. How to get free sample?
Answer:You can contact with our sales man.We will sent you free sample.Bye the way,you have to pay the freight.
2. Is this your main product?
Answer:Yes,we have produced the product for about fifteen years.
Specification:
Style | Thickness (mm) |
Weight (g/m2) |
Color | Base Cloth (g/m2) |
Weaving Way |
1 | 0.4 | 520 | gray | 310/3731 | twill |
2 | 0.5 | 580 | gray | 430/3732 | satin |
3 | 0.8 | 1000 | gray | 830/3784 | satin |
4 | 1.1 | 1600 | black | 880/3788 | satin |
5 | 1.2 | 1600 | red | 880/3788 | satin |
6 | 1.3 | 1550 | gray | 880/3788 | satin |
7 | 1.3 | 1650 | black | 880/2788 | satin |
8 | 1.5 | 2000 | red | 880/3788 | satin |
9 | 1.6 | 2350 | black | 1350 | satin |
Note:Special specification also can be produced.
