Product Details:
|
| Color: | Red/Black/White | Material: | Silicone And Fiberglass |
|---|---|---|---|
| Width: | 1000mm/1200mm | Standing Temperature: | 250 Degree |
| Substrate: | Satin Fiberglass Fabric | Package: | PVC Bags |
| High Light: | silicone impregnated fiberglass fabric,fiberglass reinforced silicone sheet,Soft Silicone Coated Fiberglass Fabric |
||

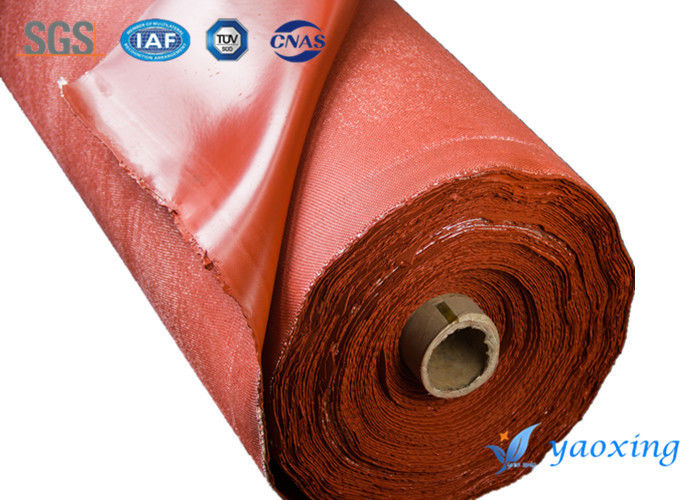

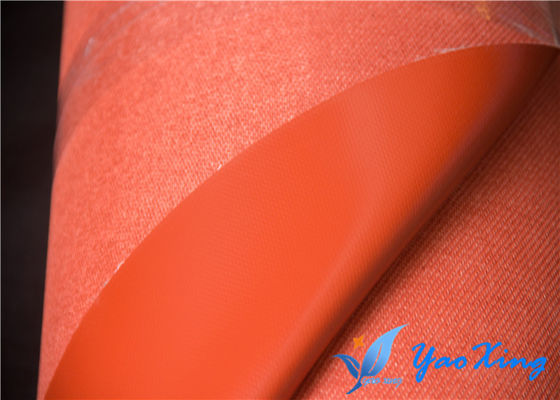

One Side Smooth Silicone Coated Fiberglass Fabric Fireproof Fabric For Industrial
1. Scope of application
Silicon rubber is a kind of fluorine macromolecule elasticity shell, which has the
performance of fine high temperature-resistance and insulation and longtime aging-resistance. After compounded with fiberglass, it is a kind of high function, useful and new material.
2. Characteristics
It has special characteristic, such as high temperature-resistance, ventilate-resistance, and fine high temperature-resistance, and it is very soft and tenacious, so it can apply in the fields of aerospace, chemistry and big electrical equipments, machinery and metallurgy.
3. Reserve & Transport
Reserve in the environment when the temperature between 0 and 40C, the humidity is bigger than 75% . far away from the heat source. Avoids with the acid and alkali and to the rubber harmful special material contact. In the transportation, prevents the extrusion.
4. The color of the products:Red. silver gray and black. can according to the customer specific request to production.
5. Packing:50M/ROLL.packing by pvc bag.
6. Specification
| Type | Thickness |
Breaking Strength (N/50mm) |
Burst Strength Mpa |
Peeling Strength N/m |
Flame Retardant |
Weight g/m2 |
|
| warp | weft | ||||||
| SRC-0.3 | 0.30+0.03 | ≥1800 | ≥1400 | ≥1.2 | ≥450 | FV-0 | 470+50 |
| SRC-0.5 | 0.50+0.05 | ≥2000 | ≥1600 | ≥2.0 | ≥450 | FV-0 | 640+60 |
| SRC-1.1 | 1.10+0.10 | ≥3800 | ≥3400 | ≥2.6 | ≥450 | / | 1700+170 |
| SRC-1.5 | 1.50+0.10 | ≥3200 | ≥2800 | ≥3.0 | ≥450 | / | 2300+230 |
